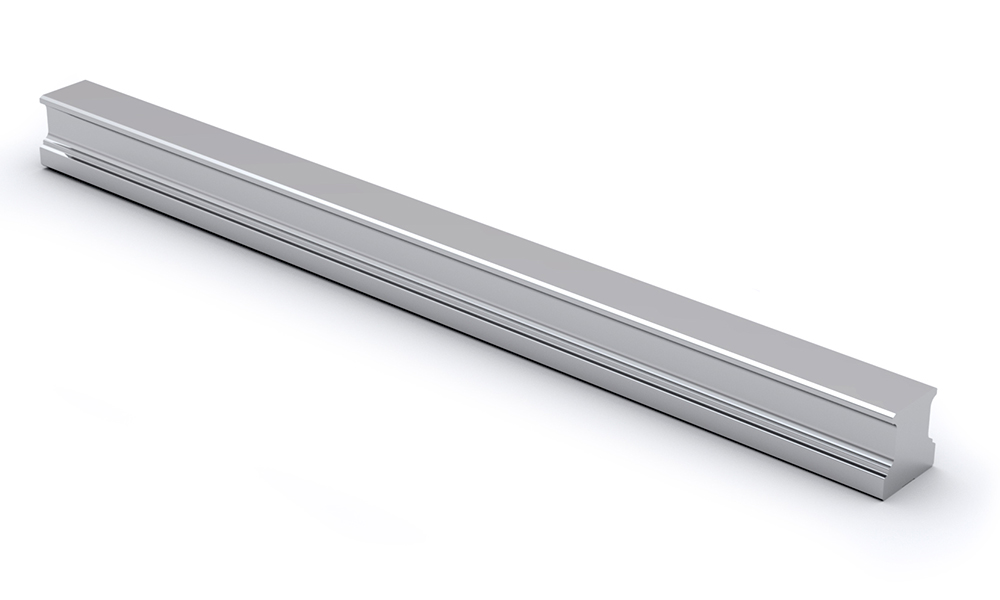

HRU Rail

STANDARD
Tapped from the bottom.
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Dimensions in mm.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD
Designation Select all CAD Compare Get quote Lead Time * Length (mm) Weight Rail (g/m)
1 4000 1290
1 4000 2280
1 4000 3020
1 4000 4380
1 4000 6790
2 4000 10530
2 4000 14000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

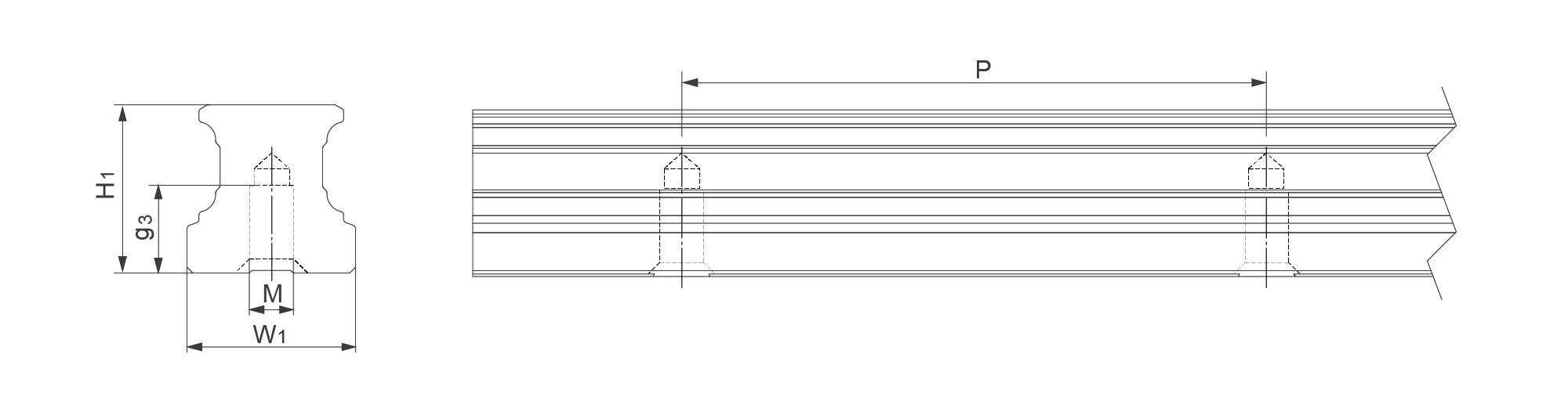

Designation Select all CAD Compare Get quote H1 W1 M x g3 Hole Pitch (P)
15 15 M5 x 8 60
20 20 M6 x 10 60
23 23 M6 x 12 60
27 28 M8 x 15 80
32 34 M8 x 15 80
39 45 M12 x 19 105
45.7 53 M14 x 24 120
