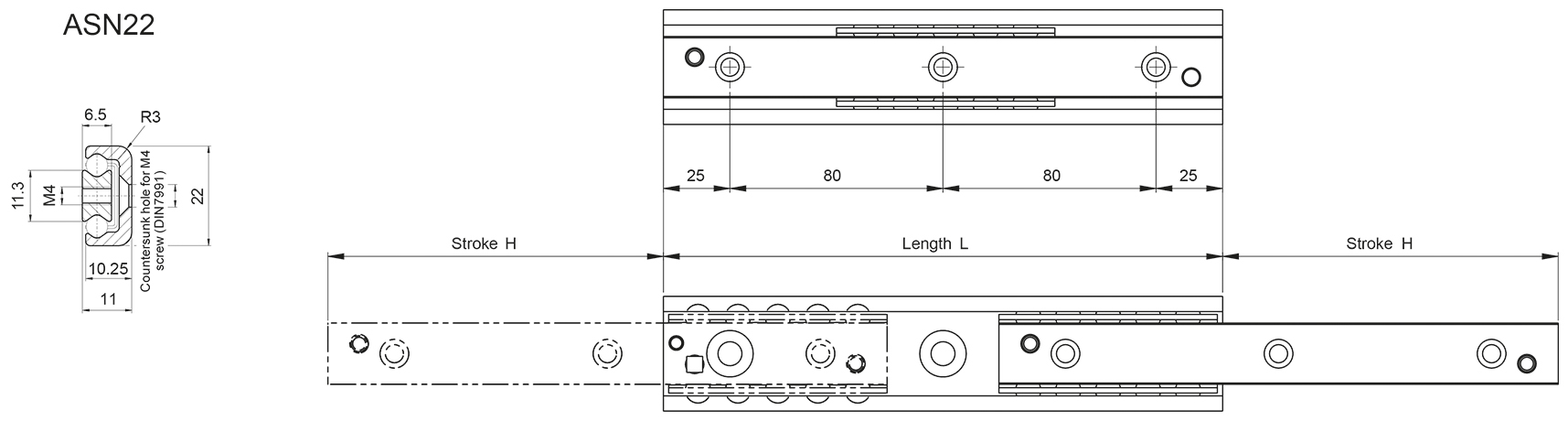

ASN22

LOCALLY MANUFACTURED 62-593 kg/pair
Partial extension consisting of a guide rail and a slider. This compact size and simple design allow very high load capacities. The high system rigidity is formed in connection with the adjacent construction.

Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.

Dimensions in mm.

System Load Capacity Radial, System Load Capacity Axial, System Moment Capacity My and System Moment Capacity Mz values refers to a pair of rails.

Mx moment value refers to a single rail. The Mx system capacity depends on the width of the system and the load capacity radial.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Length Stroke Weight (kg/m) System Load Capacity Radial (N) System Load Capacity Axial (N) System Moment Capacity My (Nm) System Moment Capacity Mz (Nm) Mx moment (Nm) Number of Fixing Holes
Get quote 2 130 76 1.32 626 438 20 30 5.7 2
Get quote 2 210 111 1.32 1430 1002 72 102 10.7 3
Get quote 2 290 154 1.32 1988 1392 138 198 14.9 4
Get quote 2 370 196 1.32 2556 1790 226 324 19 5
Get quote 2 450 231 1.32 3402 2380 360 516 24 6
Get quote 2 530 274 1.32 3958 2770 496 710 28.2 7
Get quote 2 610 316 1.32 4524 3168 654 934 32.3 8
Get quote 2 690 351 1.32 5378 3764 872 1246 37.3 9
Get quote 2 770 394 1.32 5934 4154 1078 1538 41.5 10

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

  • LOCALLY MANUFACTURED 122-1573 kg/pair

    ASN28
    Partial extension one guide rail and slider
  • LOCALLY MANUFACTURED 213-2652 kg/pair

    ASN35
    Partial extension one guide rail and slider
  • LOCALLY MANUFACTURED 319-4859 kg/pair

    ASN43
    Partial extension one guide rail and slider
  • LOCALLY MANUFACTURED 2118-8849 kg/pair

    ASN63
    Partial extension one guide rail and slider
