ASN43

Partial extension consisting of a guide rail and a slider. This compact size and simple design allow very high load capacities. The high system rigidity is formed in connection with the adjacent construction.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm
Designation Weight Length Stroke Modification System Load Capacity Radial System Load Capacity Axial Stroke Number of Fixing Holes
5,25 kg/m 210,00 15,00 1595 N 1117 N 123 3
5,25 kg/m 290,00 15,00 2872 N 2010 N 158 4
5,25 kg/m 370,00 15,00 3377 N 2364 N 208 5
5,25 kg/m 450,00 15,00 4690 N 3283 N 243 6
5,25 kg/m 530,00 15,00 6039 N 4227 N 278 7
5,25 kg/m 610,00 15,00 7411 N 5188 N 313 8
5,25 kg/m 690,00 15,00 7863 N 5504 N 363 9
5,25 kg/m 770,00 15,00 9232 N 6463 N 398 10
5,25 kg/m 850,00 15,00 10615 N 7431 N 433 11
5,25 kg/m 930,00 15,00 11054 N 7738 N 483 12
5,25 kg/m 1 010,00 15,00 12434 N 8704 N 518 13
5,25 kg/m 1 090,00 15,00 12877 N 9014 N 568 14
5,25 kg/m 1 170,00 15,00 14254 N 9978 N 603 15
5,25 kg/m 1 250,00 15,00 15638 N 10947 N 638 16
5,25 kg/m 1 330,00 15,00 16075 N 11252 N 688 17
5,25 kg/m 1 410,00 15,00 17456 N 12219 N 723 18
5,25 kg/m 1 490,00 15,00 18845 N 13191 N 758 19
5,25 kg/m 1 570,00 15,00 20238 N 14167 N 793 20
5,25 kg/m 1 650,00 15,00 20661 N 14463 N 843 21
5,25 kg/m 1 730,00 15,00 22052 N 15436 N 878 22
5,25 kg/m 1 810,00 15,00 22479 N 15736 N 928 23
5,25 kg/m 1 890,00 15,00 23867 N 16707 N 963 24
5,25 kg/m 1 970,00 15,00 24298 N 17009 N 1013 25

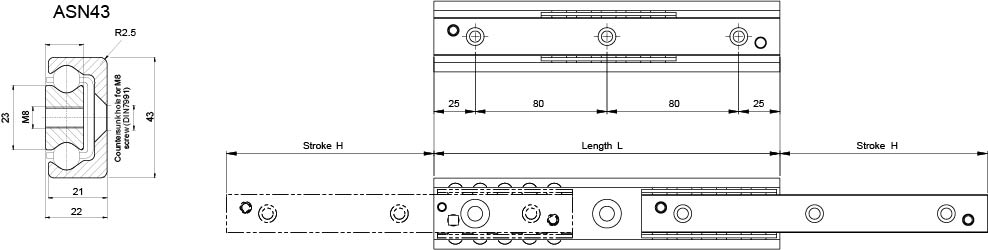

Technical Drawing
Designation Mx moment (Nm) My moment (Nm) Mz moment (Nm)
60,60 84,00 120,00
93,80 201,00 288,00
115,90 308,00 440,00
149,20 509,00 728,00
182,40 762,00 1 088,00
251,60 1 064,00 1 521,00
237,80 1 294,00 1 849,00
271,00 1 681,00 2 402,00
304,20 2 119,00 3 027,00
326,40 2 439,00 3 484,00
359,60 2 961,00 4 230,00
381,80 3 337,00 4 767,00
415,00 3 943,00 5 633,00
448,20 4 599,00 6 571,00
470,40 5 065,00 7 236,00
503,60 5 806,00 8 295,00
536,80 6 598,00 9 425,00
570,10 7 440,00 10 628,00
592,20 8 029,00 11 470,00
625,50 8 956,00 12 794,00
647,60 9 601,00 13 716,00
680,80 10 612,00 15 160,00
703,00 11 314,00 16 162,00
