ASN35

Partial extension consisting of a guide rail and a slider. This compact size and simple design allow very high load capacities. The high system rigidity is formed in connection with the adjacent construction.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm
Designation Weight Length Stroke Modification System Load Capacity Radial System Load Capacity Axial Stroke Number of Fixing Holes
3,05 kg/m 210,00 12,00 1065 N 746 N 127 3
3,05 kg/m 290,00 12,00 2060 N 1442 N 159 4
3,05 kg/m 370,00 12,00 2638 N 1847 N 203 5
3,05 kg/m 450,00 12,00 3217 N 2252 N 247 6
3,05 kg/m 530,00 12,00 4282 N 2997 N 279 7
3,05 kg/m 610,00 12,00 4858 N 3401 N 323 8
3,05 kg/m 690,00 12,00 5435 N 3804 N 367 9
3,05 kg/m 770,00 12,00 6521 N 4565 N 399 10
3,05 kg/m 850,00 12,00 7095 N 4966 N 443 11
3,05 kg/m 930,00 12,00 7669 N 5368 N 487 12
3,05 kg/m 1 010,00 12,00 8765 N 6136 N 519 13
3,05 kg/m 1 090,00 12,00 9337 N 6536 N 563 14
3,05 kg/m 1 170,00 12,00 9909 N 6937 N 607 15
3,05 kg/m 1 250,00 12,00 11021 N 7708 N 639 16
3,05 kg/m 1 330,00 12,00 11582 N 8107 N 683 17
3,05 kg/m 1 410,00 12,00 12153 N 8507 N 727 18
3,05 kg/m 1 490,00 12,00 13260 N 9282 N 759 19

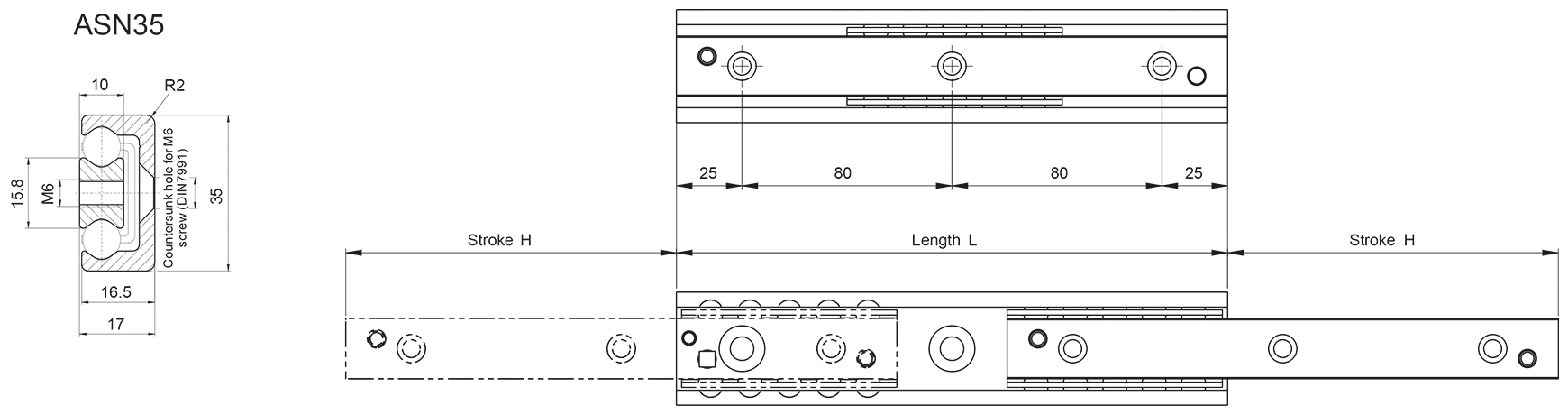

Technical Drawing
Designation Mx moment (Nm) My moment (Nm) Mz moment (Nm)
29,40 57,00 82,00
46,90 146,00 208,00
59,90 238,00 340,00
73,00 354,00 505,00
90,40 543,00 775,00
103,50 711,00 1 015,00
116,60 902,00 1 288,00
134,00 1 191,00 1 702,00
147,10 1 435,00 2 050,00
160,20 1 702,00 2 431,00
177,60 2 092,00 2 989,00
190,70 2 412,00 3 445,00
203,80 2 754,00 3 934,00
221,20 3 245,00 4 636,00
234,30 3 640,00 5 200,00
247,40 4 058,00 5 797,00
264,80 4 650,00 6 643,00
