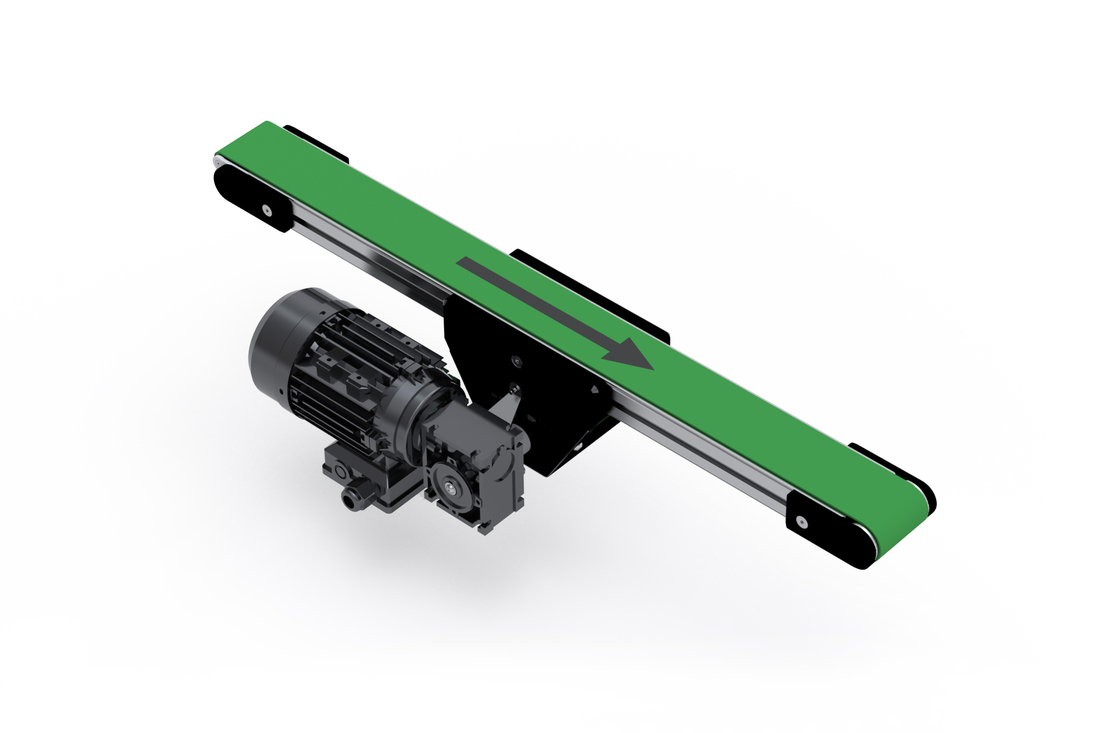

BF40MIK

LOCALLY PRODUCED

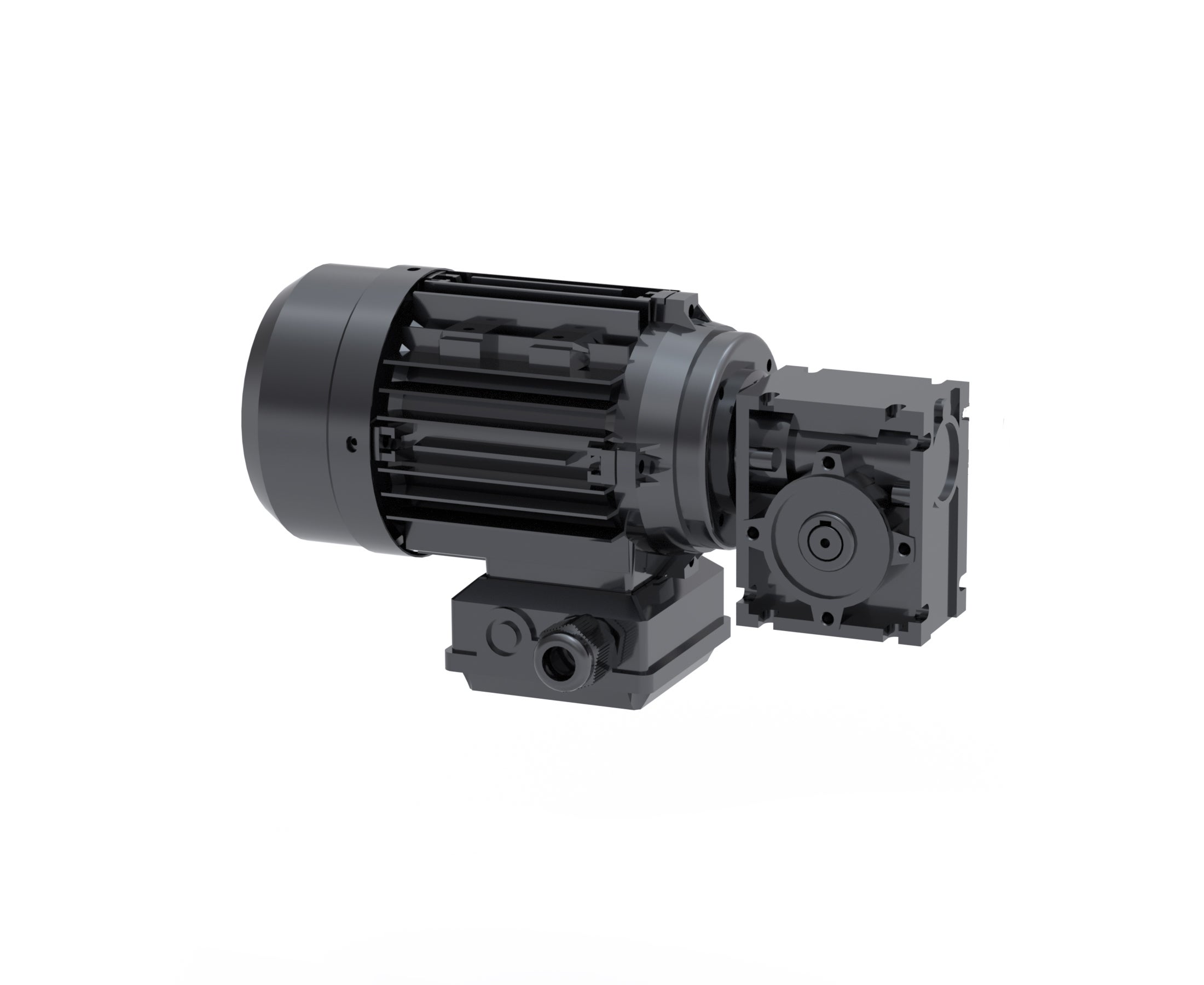

This is a selection of BF40MIK standard conveyor sizes. Given speeds are based on using an MS63B-4 with the appropriate SB030 gear.

Recommended max. load 75 kg. The recommended max load is evenly spread over the entire conveyor and is in relation to a nominal width and length.

For other dimensions please contact Rollco.
Download PDF

Product Information

Length: Up to 4000 mm

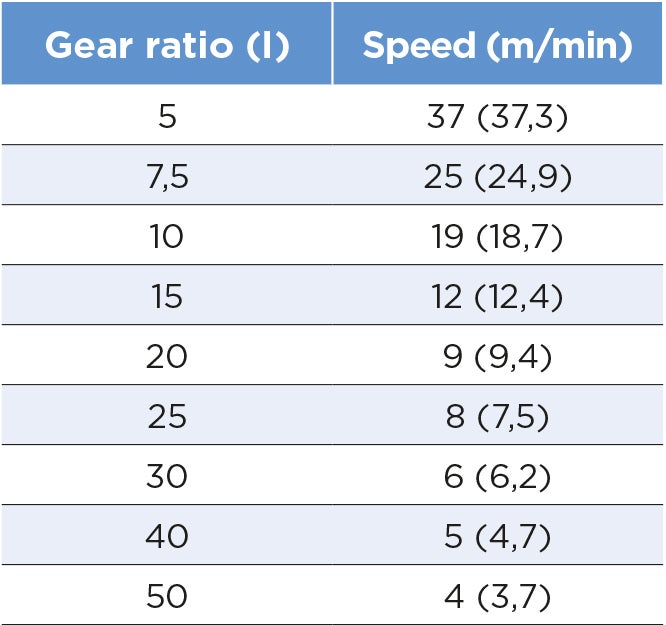

Gear ratio: 5 / 7,5 / 10 / 15 / 20 / 25 / 30 / 40 / 50 I
Speed: 37 (37,3) / 25 (24,9) / 19 (18,7) / 12 (12,4) / 9 (9,4) / 8 (7,5) / 6 (6,2) / 5 (4,7) / 4 (3,7) m/min
Drive side: Right/left
Motor position: Horizontal/vertical — 1-4

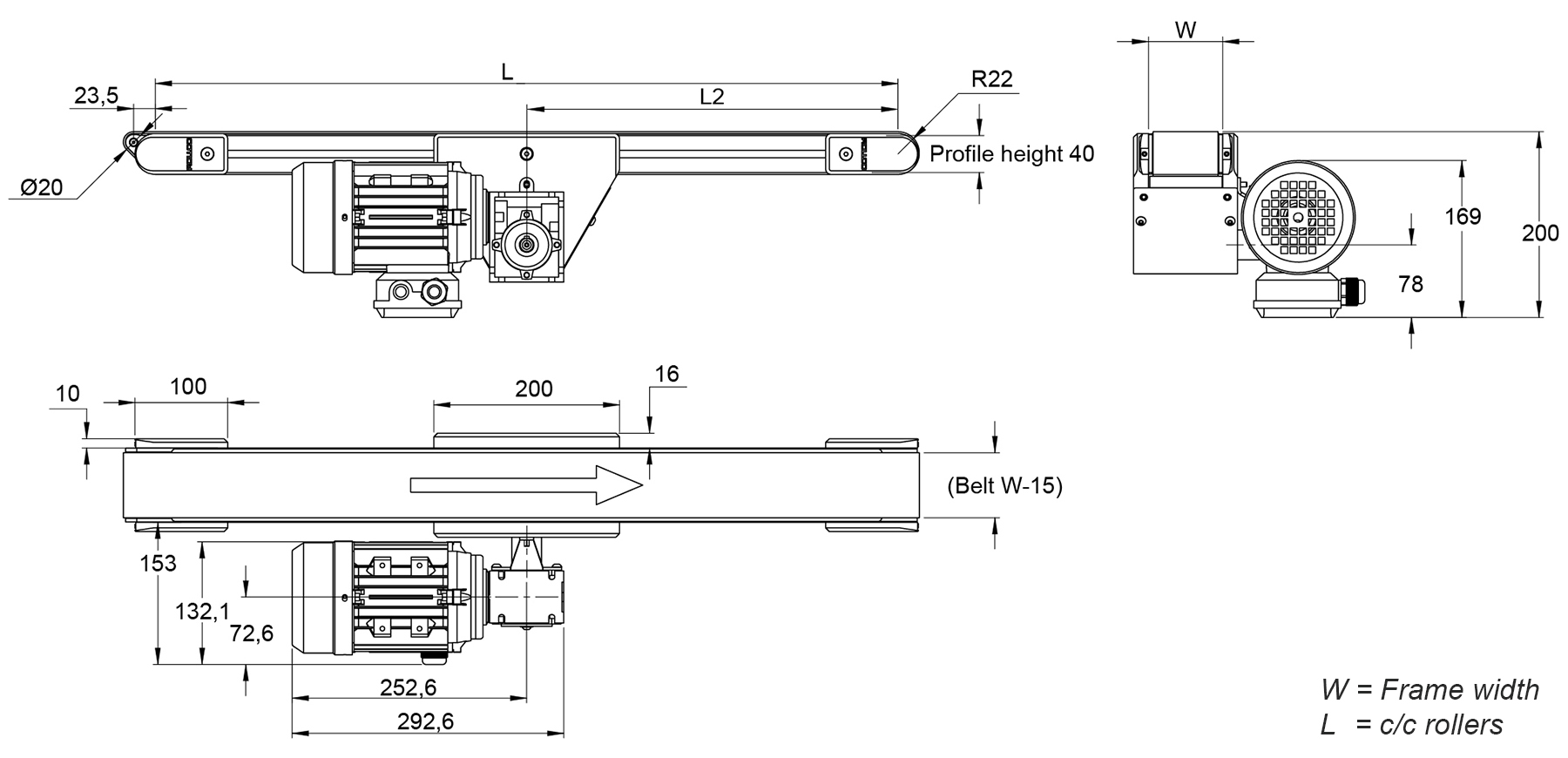

Technical Drawing
Designation Select all Width
40 mm
Compare
Get quote
80 mm
Compare
Get quote
120 mm
Compare
Get quote
160 mm
Compare
Get quote
200 mm
Compare
Get quote
250 mm
Compare
Get quote
300 mm
Compare
Get quote
350 mm
Compare
Get quote
400 mm
Compare
Get quote
