BF80E

LOCALLY MANUFACTURED
This table shows a selection of BF80E standard conveyor sizes. Given speeds are based on using an MS71A-4 with the appropriate SB050 gear.

Recommended max. load 150 kg. The recommended max load is evenly spread over the entire conveyor and is in relation to a nominal width and length.

Dimensions in mm.

For other dimensions please contact Rollco.
Read more

Product Information

Length (mm): Up to 6000

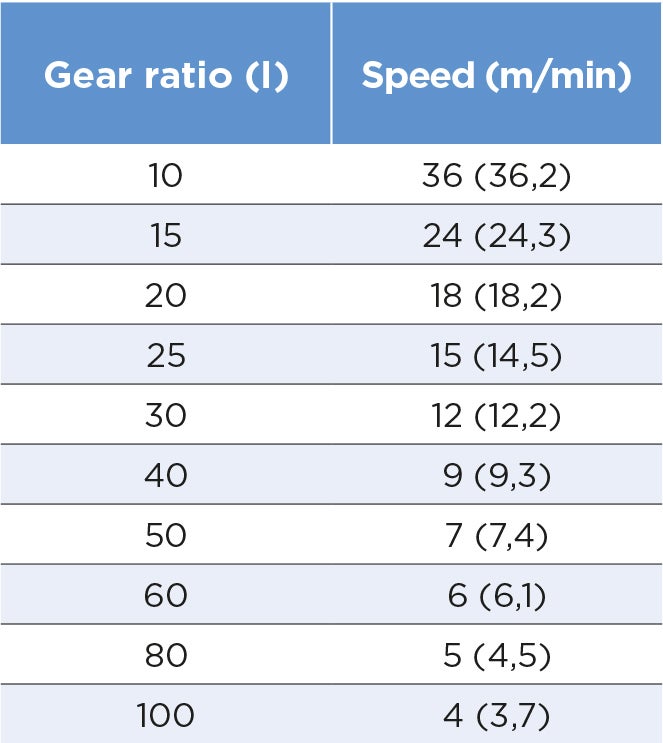

Gear ratio (I): 10 / 15 / 20 / 25 / 30 / 40 / 50 / 60 / 80 / 100
Speed (m/min): 36 (36.2) / 24 (24.3) / 18 (18.2) / 15 (14.5) / 12 (12.2) / 9 (9.3) / 7 (7.4) / 6 (6.1) / 5 (4.5) / 4 (3.7)
Drive side: Right/left
Motor Position: Horizontal/vertical — 1-4
Designation Select all Compare Get quote Lead Time * Width (mm)
Get quote 2 500
Get quote 2 600
Get quote 2 700
Get quote 2 800
Get quote 2 900
Get quote 2 1000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
