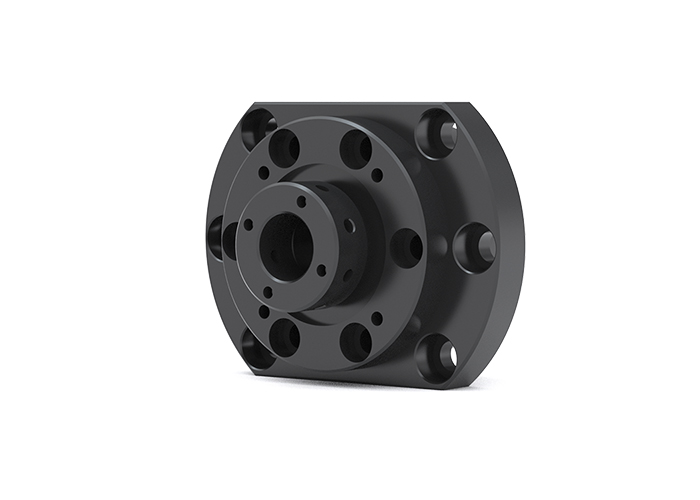

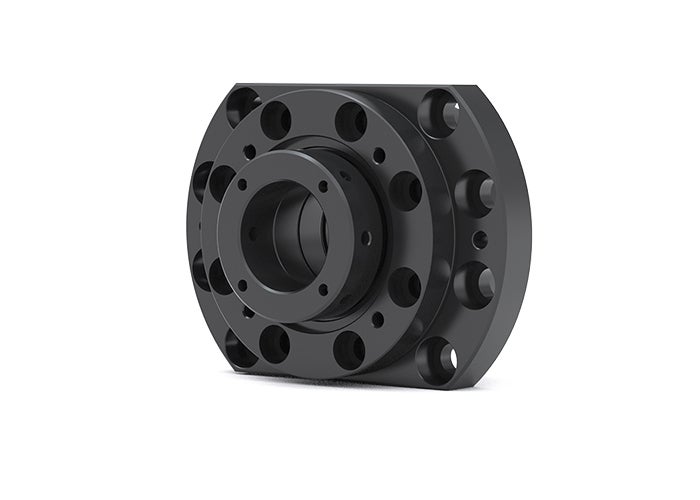

WBK..DF/WBK..DFF

STOCK ITEM
All dimensions in mm.
Download PDF
Additional Drawing 1
Designation Select all Lead Time * Dynamic Permissible axial load Static Permissible axial load
1 20 kN 28,5 kN
Compare
Get quote
1 20,5 kN 30,2 kN
Compare
Get quote
2 33,3 kN 60,4 kN
Compare
Get quote
2 22,3 kN 36,4 kN
Compare
Get quote
2 36,1 kN 72,8 kN
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

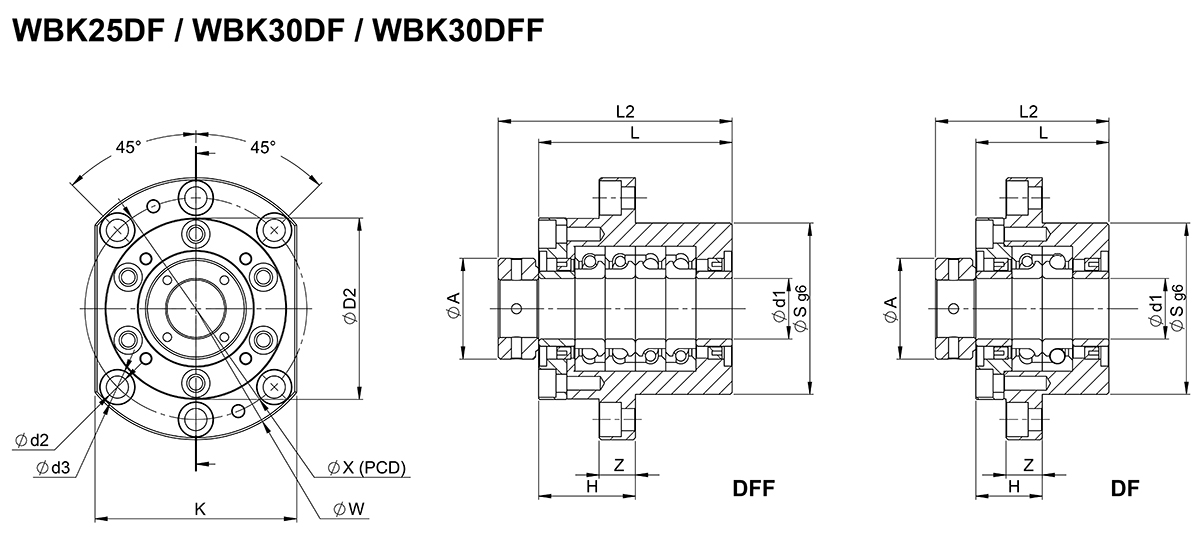

Technical Drawing
Designation Select all A d1 d2 L H K S Z L1 L2 L4 D3 Fig. Bearing X W
45 25 11 66 33 100 85 18 66 86 - 17 1 25TAC 62B 110 130
Compare
Get quote
50 30 11 66 33 100 85 18 66 86 - 17 1 30TAC 62B 110 130
Compare
Get quote
50 30 11 96 48 100 85 18 96 116 - 17 1 30TAC 62B 110 130
Compare
Get quote
60 40 11 66 33 106 95 18 60 83 3 17 2 40TAC 72B 121 142
Compare
Get quote
60 40 11 96 48 106 95 18 90 113 3 17 2 40TAC 72B 121 142
Compare
Get quote
Additional Drawing 1
Designation Select all Axial dynamic load capacity Ca Axial static load capacity C0a
28,5 kN 40,7 kN
Compare
Get quote
29,2 kN 43,2kN
Compare
Get quote
47,6 kN 86,3 kN
Compare
Get quote
31,9 kN 52 kN
Compare
Get quote
51,5 kN 104 kN
Compare
Get quote
  • STOCK ITEM
    Ball nut cylindrical with thread, internal recirculation, for right lead (SR) screw
  • STOCK ITEM
    Ball nut with flange, for right & left lead screw (SR/SL), most common type
  • STOCK ITEM
    Ball nut with flange, long lead, for right lead (SR) screw
  • STOCK ITEM
    Ball nut with flange, overlead, for right lead (SCR) screw
  • STOCK ITEM
    Ball nut, double, with flange, for right lead screw (SR)
  • STOCK ITEM
    Safety nut for ball screw
  • STOCK ITEM
    Lock nut for ball screw
  • STOCK ITEM
    Housing for ball nut FSCR/FSCL
  • STOCK ITEM

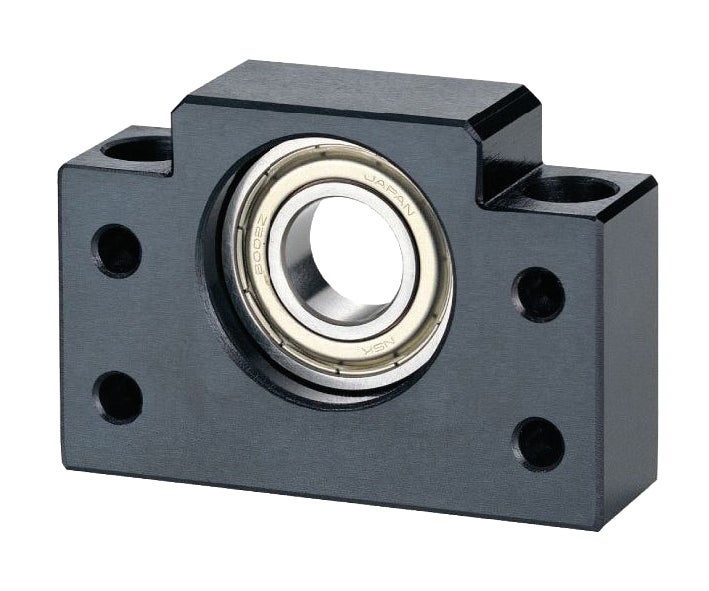

    Support unit for end of ball screw machined accordingly
