FKN

STOCK ITEM
All dimensions in mm.
Download PDF
Additional Drawing 1

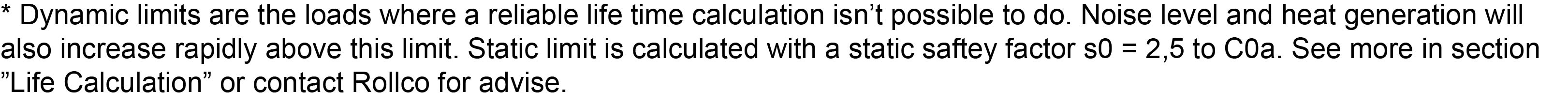

Designation Select all Lead Time * Dynamic Permissible axial load Static Permissible axial load
1 0,72 kN 0,96 kN
Compare
Get quote
1 1,02 kN 1,76 kN
Compare
Get quote
1 2 kN 3,15 kN
Compare
Get quote
1 2,4 kN 3,6 kN
Compare
Get quote
1 2,9 kN 4,2 kN
Compare
Get quote
1 4,1 kN 7,3 kN
Compare
Get quote
1 8,3 kN 11,8 kN
Compare
Get quote
1 9,7 kN 14,5 kN
Compare
Get quote
1 14,2 kN 20,8 kN
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

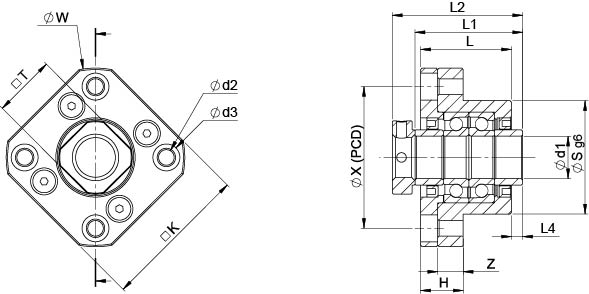

Technical Drawing
Designation Select all d1 d2 L H K S T Z L1 L2 L4 D3 Bearing X W
6 3,40 20 7 34 22 12 3 22 27 1,50 6,50 706 A 28 36
Compare
Get quote
8 3,40 23 9 35 28 14 5 25 31,50 1,50 6,50 708 A 35 43
Compare
Get quote
10 4,50 27 10 42 34 16 6 27 35 0,50 8 7000 A 42 52
Compare
Get quote
12 4,50 27 10 44 36 19 6 27 35 0,50 8 7001 A 44 54
Compare
Get quote
15 5,50 32 15 52 40 22 9 38 46 4 9,50 7002 A 50 63
Compare
Get quote
17 6,60 45 22 61 50 24 12 44 56 1 11 7203 A 62 77
Compare
Get quote
20 6,60 52 22 68 57 30 12 50 61 1 11 7204 B 70 85
Compare
Get quote
25 9 57 27 79 63 35 14 58 73 4 14 7205 B 80 98
Compare
Get quote
30 11 62 30 93 75 40 15 50 70 -3 17,50 7208 B 95 117
Compare
Get quote
Additional Drawing 2

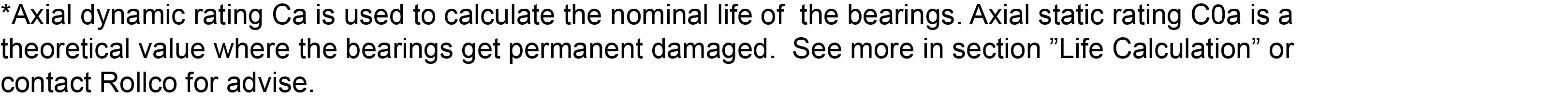

Designation Select all Axial dynamic load capacity Ca Axial static load capacity C0a
2,67 kN 2,41 kN
Compare
Get quote
4,41 kN 4,39 kN
Compare
Get quote
7,04 kN 7,88 kN
Compare
Get quote
7,6 kN 9 kN
Compare
Get quote
8 kN 10,5 kN
Compare
Get quote
14,2 kN 18,2 kN
Compare
Get quote
23,3 kN 29,4 kN
Compare
Get quote
26 kN 36,2 kN
Compare
Get quote
36 kN 51,9 kN
Compare
Get quote
