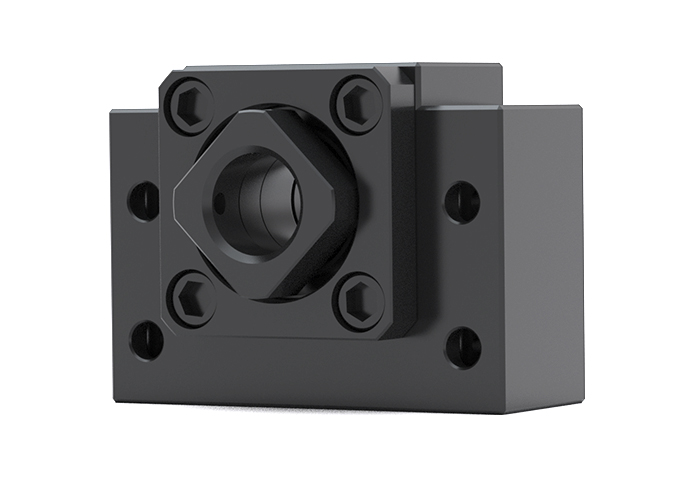

BKN

STOCK ITEM
All dimensions in mm.

*Using standard shaft nut type RN.
Download PDF
Additional Drawing 1
Designation Select all Lead Time * Dynamic Permissible axial load Static Permissible axial load
2 1,02 kN 1,76 kN
Compare
Get quote
1 2 kN 3,15 kN
Compare
Get quote
1 2,4 kN 3,6 kN
Compare
Get quote
1 2,9 kN 4,2 kN
Compare
Get quote
1 4,1 kN 7,3 kN
Compare
Get quote
1 5,8 kN 8 kN
Compare
Get quote
1 9,7 kN 14,5 kN
Compare
Get quote
1 14,2 kN 20,8 kN
Compare
Get quote
1 18 kN 35,4 kN
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

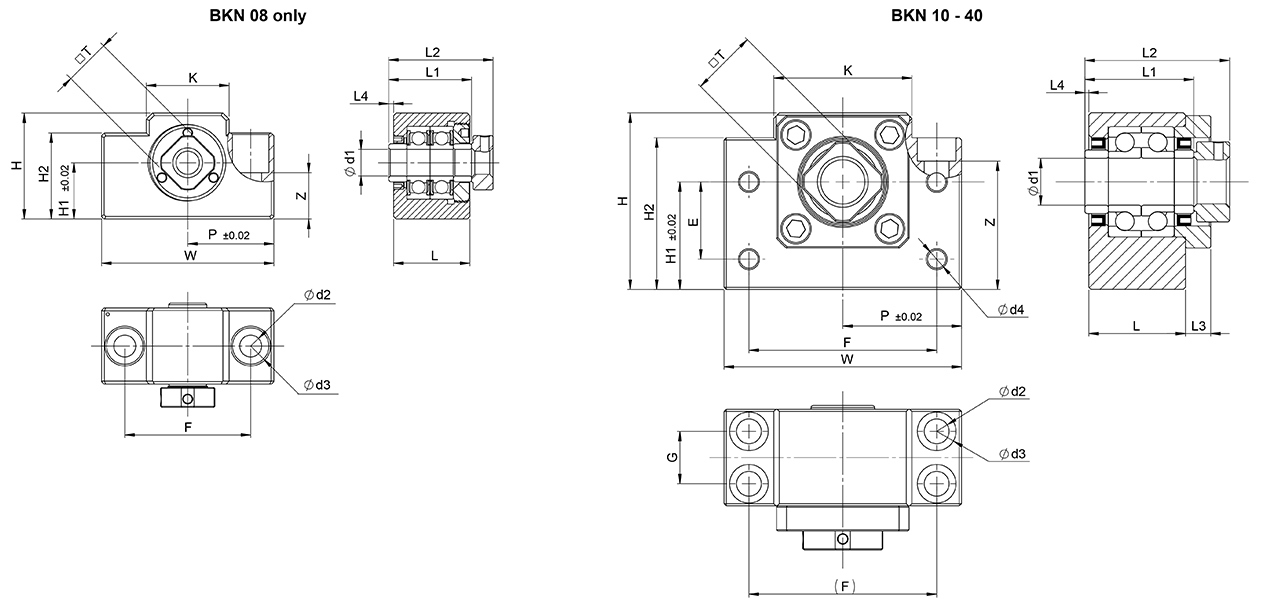

Technical Drawing
Designation Select all d1 d2 L H E F G K T P Z H1 H2 L1 L2 L3 L4 D3 D4 Bearing W
8 6,60 23 32 - 38 - 25 14 26 14 17 26 25 31,50 - 1,50 11 - 708 A 52
Compare
Get quote
10 6,60 25 39 15 46 13 34 16 30 27,50 22 32,50 27 35 5 0,50 10,80 5,50 7000 A 60
Compare
Get quote
12 6,60 25 43 18 46 13 34 19 30 31 25 32,50 27 35 5 0,50 10,80 5,50 7001 A 60
Compare
Get quote
15 6,60 27 48 18 54 15 40 22 35 31,50 28 38 30 38 6 0 11 5,50 7002 A 70
Compare
Get quote
17 9 35 64 28 68 19 50 24 43 46,50 39 55 38 51 9 0 14 6,60 7203 A 86
Compare
Get quote
20 9 35 60 22 70 19 52 30 44 41,50 34 50 40 51 8 0 14 6,60 7004 A 88
Compare
Get quote
25 11 42 80 33 85 22 64 35 53 59 48 70 48 63 12 0 17 9 7205 B 106
Compare
Get quote
30 14 45 89 33 102 23 76 40 64 65 51 78 50 70 14 0 20 11 7206 B 128
Compare
Get quote
40 18 61 110 37 130 33 100 50 80 72,50 60 90 66 91 18 0 26 14 7208 B 160
Compare
Get quote
Additional Drawing 2
Designation Select all Axial dynamic load capacity Ca Axial static load capacity C0a
4,41 kN 4,39 kN
Compare
Get quote
7,04 kN 7,88 kN
Compare
Get quote
7,6 kN 9 kN
Compare
Get quote
8 kN 10,5 kN
Compare
Get quote
14,2 kN 18,2 kN
Compare
Get quote
14,2 kN 20 kN
Compare
Get quote
26 kN 36,2 kN
Compare
Get quote
36 kN 51,9 kN
Compare
Get quote
56,1 kN 88,5 kN
Compare
Get quote
