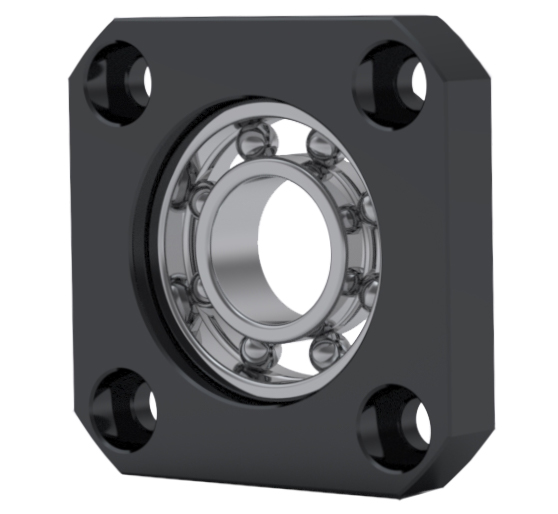

FFN

STOCK ITEM
All dimensions in mm.
Download PDF
Designation Select all Lead Time *
1
Compare
Get quote
1
Compare
Get quote
1
Compare
Get quote
2
Compare
Get quote
2
Compare
Get quote
1
Compare
Get quote
1
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

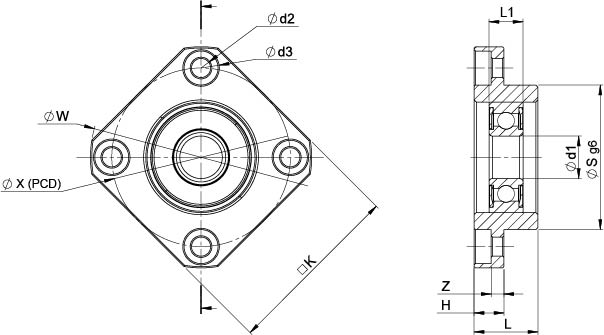

Technical Drawing
Designation Select all d1 d2 L H K S Z L1 D3 Bearing X W
8 3,40 12 7 35 28 3 7 6,50 608-2Z 35 43
Compare
Get quote
10 4,50 15 7 42 34 3 8 8 6000-2Z 42 52
Compare
Get quote
15 5,50 17 9 52 40 3,50 9 9,50 6002-2Z 50 63
Compare
Get quote
17 6,60 20 11 61 50 4,50 12 11 6203-2Z 62 77
Compare
Get quote
20 6,60 20 11 68 57 4,50 14 11 6204-2Z 70 85
Compare
Get quote
25 9 24 14 79 63 5,50 15 14 6205-2Z 80 98
Compare
Get quote
30 11 27 18 93 75 7 16 17 6206-2Z 95 117
Compare
Get quote
