Linear Unit CTV 110

The CTV series describes linear units with a precision ball screw drive and two parallel, integrated, zero backlash rail guides. In the linear units CTV a precision ball screw, with tolerance class IS07 (IS05 an request), with reduced backlash of the ball nut is used.

Two parallel circulating antistatic polyurethane sealing strips and an aluminum cover are ensuring ta protect all the parts in the profile from dust and other contaminations. Re-lubrication can be done through maintenance holes on the side of the profile.
Download PDF

Product Information

Modulus of elasticity: E = 70000 N / mm2
Operating temperature: 0°C ~ +60°C For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%

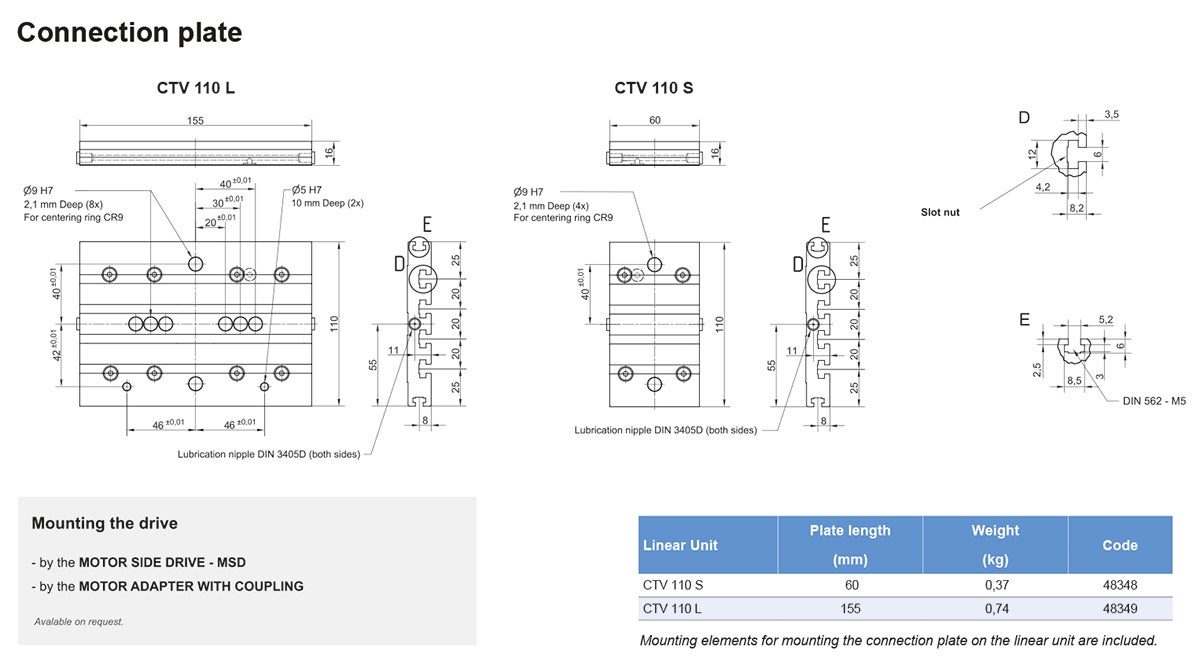

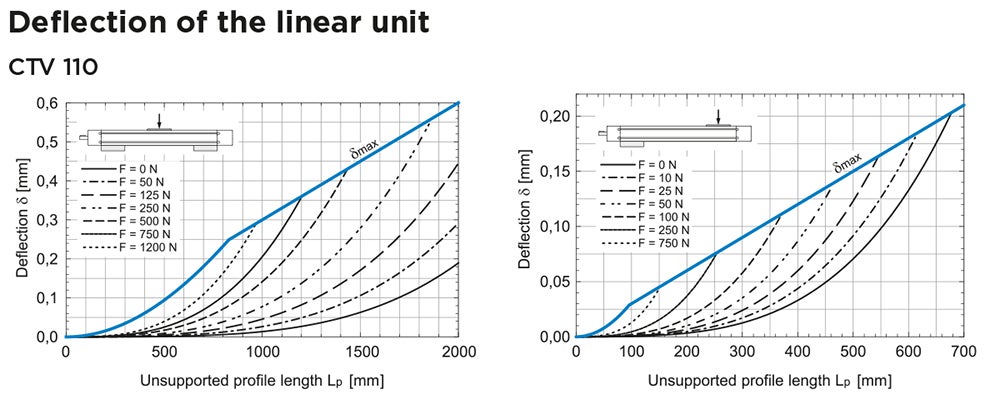

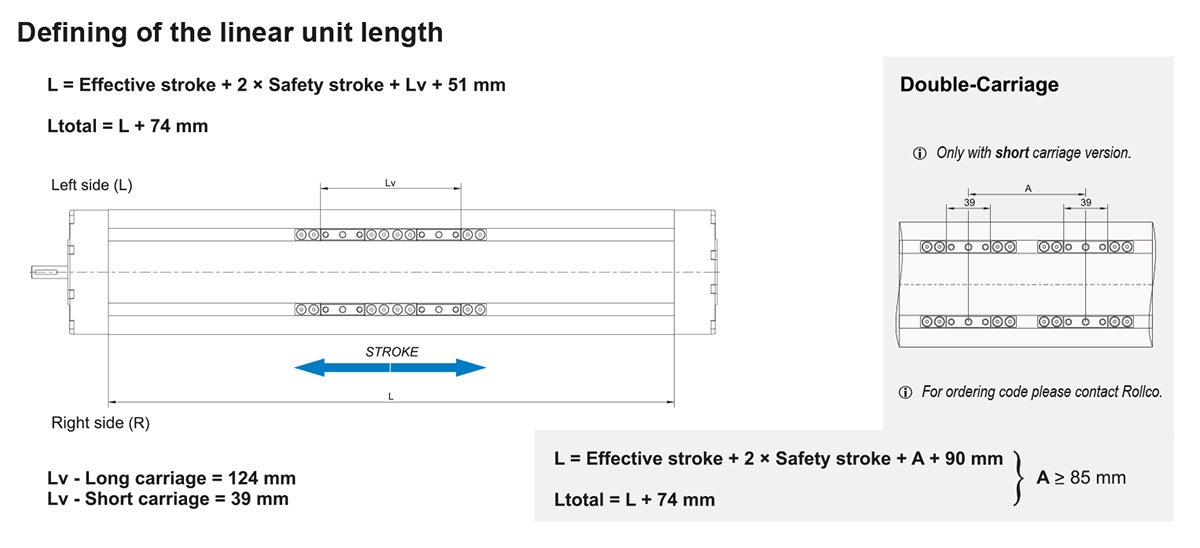

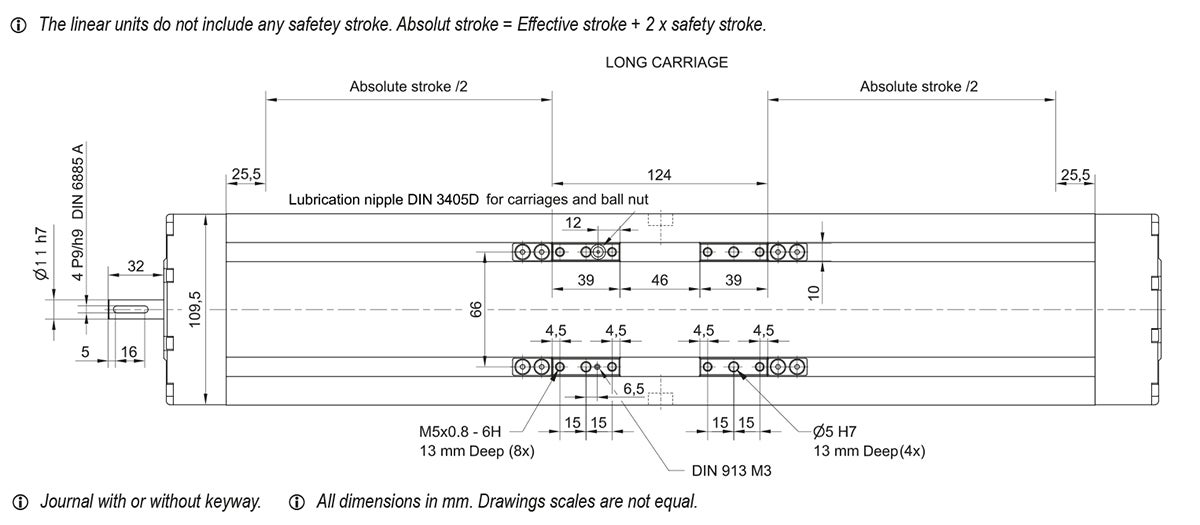

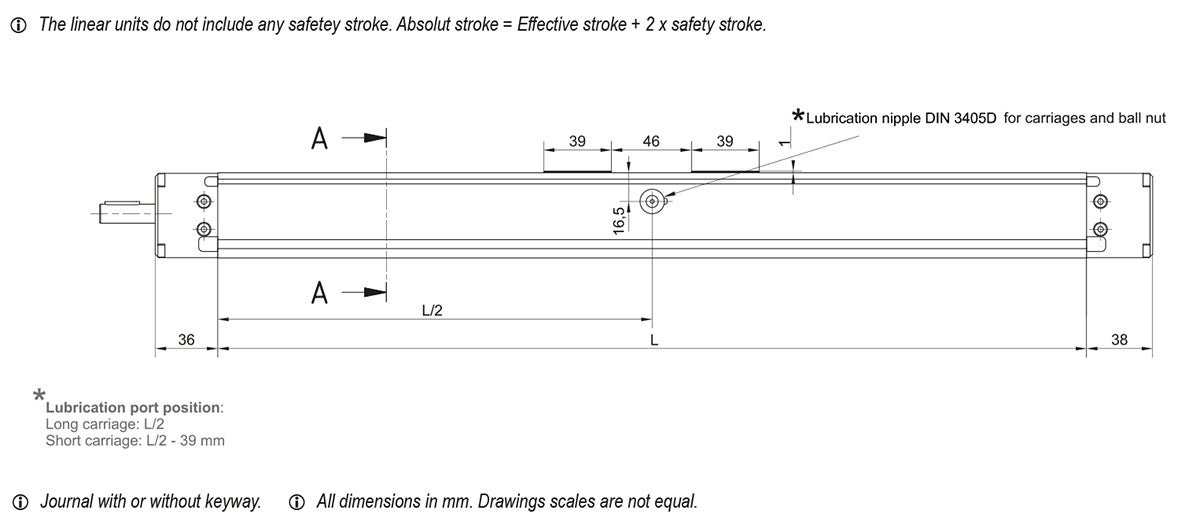

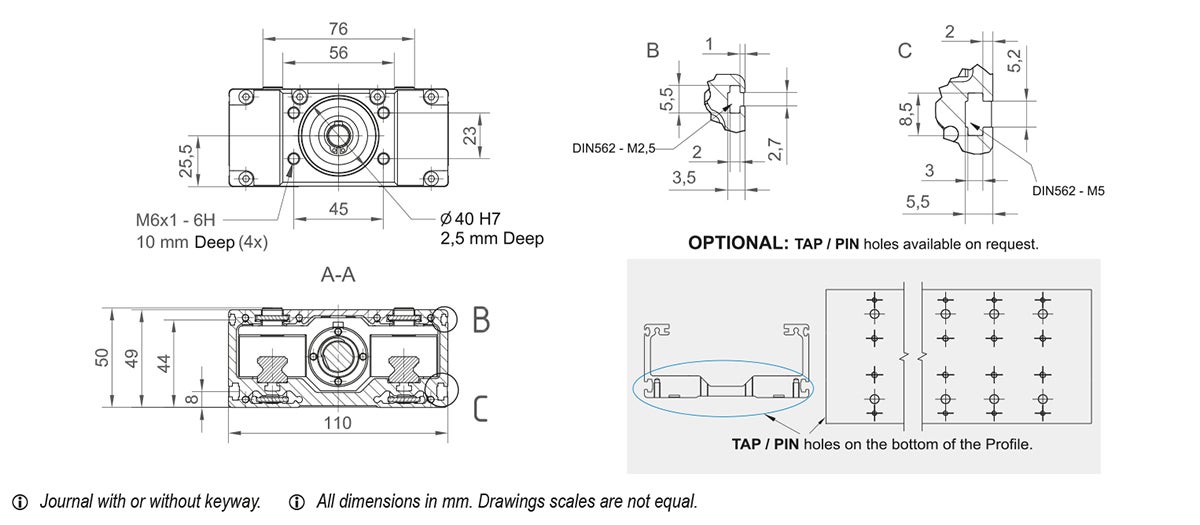

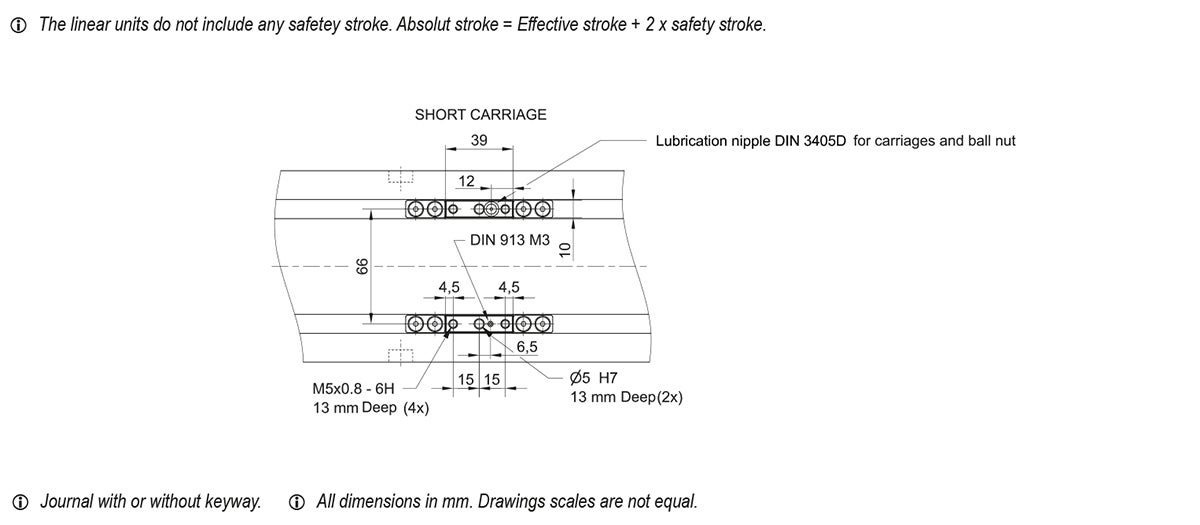

Technical Drawing
Designation Select all Lead Time * Carriage Length Lv Dynamic moments Mx Dynamic moments My Dynamic moments Mz Dynamic Load Capacity C Static Load Capacity C0 Max. permissible loads Forces Fpy Max. permissible loads Forces Fpz Max. permissible loads Moments Mpx Max. permissible loads Moments Mpy Max. permissible loads Moments Mpz Moved mass Max length Lmax Max. stroke Min. stroke
2 39 650 Nm 118 Nm 235 Nm 19800 N 35000 N 4670 N 9390 N 310 Nm 90 Nm 90 Nm 0,63 kg 1500 1410 40
Compare
Get quote
2 39 650 Nm 118 Nm 235 Nm 19800 N 35000 N 4670 N 9390 N 310 Nm 90 Nm 90 Nm 0,63 kg 1500 1410 40
Compare
Get quote
2 39 650 Nm 118 Nm 235 Nm 19800 N 35000 N 4670 N 9390 N 310 Nm 90 Nm 90 Nm 0,63 kg 1500 1410 40
Compare
Get quote
2 124 1305 Nm 1680 Nm 1680 Nm 39600 N 70000 N 13080 N 18800 N 620 Nm 800 Nm 550 Nm 1,36 kg 1500 1325 40
Compare
Get quote
2 124 1305 Nm 1680 Nm 1680 Nm 39600 N 70000 N 13080 N 18800 N 620 Nm 800 Nm 550 Nm 1,36 kg 1500 1325 40
Compare
Get quote
2 124 1305 Nm 1680 Nm 1680 Nm 39600 N 70000 N 13080 N 18800 N 620 Nm 800 Nm 550 Nm 1,36 kg 1500 1325 40
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Additional Drawing 1
Designation Select all Carriage version Dyn. Load Capacity C Stat. Load Capacity C0 Dynamic Moment Mx Dynamic Moment My Dynamic Moment Mz Max perm. Loads Forces Fpy Max perm. Loads Moments Mpx Max perm. Loads Moments Mpy Max perm. Loads Moments Mpz
S2 39600 N 70000 N 1300 Nm 19,8 * A (mm) Nm 19,8 * A (mm) Nm 12940 N 620 Nm 9,4 * A (mm) Nm 6,5 * A (mm) Nm
Compare
Get quote
S2 39600 N 70000 N 1300 Nm 19,8 * A (mm) Nm 19,8 * A (mm) Nm 12940 N 620 Nm 9,4 * A (mm) Nm 6,5 * A (mm) Nm
Compare
Get quote
S2 39600 N 70000 N 1300 Nm 19,8 * A (mm) Nm 19,8 * A (mm) Nm 12940 N 620 Nm 9,4 * A (mm) Nm 6,5 * A (mm) Nm
Compare
Get quote
S2 39600 N 70000 N 1300 Nm 19,8 * A (mm) Nm 19,8 * A (mm) Nm 12940 N 620 Nm 9,4 * A (mm) Nm 6,5 * A (mm) Nm
Compare
Get quote
S2 39600 N 70000 N 1300 Nm 19,8 * A (mm) Nm 19,8 * A (mm) Nm 12940 N 620 Nm 9,4 * A (mm) Nm 6,5 * A (mm) Nm
Compare
Get quote
S2 39600 N 70000 N 1300 Nm 19,8 * A (mm) Nm 19,8 * A (mm) Nm 12940 N 620 Nm 9,4 * A (mm) Nm 6,5 * A (mm) Nm
Compare
Get quote
Additional Drawing 2
Designation Select all Max travel speed Max rotational speed Max. drive torque Ma Lead constant No load torque Carriage S No load torque Carriage L Ball screw (d x l) Max. repeatability precision Standard ISO7 Max. repeatability precision ISO5 Dynamic load capacity BS Ca Max. axial load Fx Min. stroke Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴

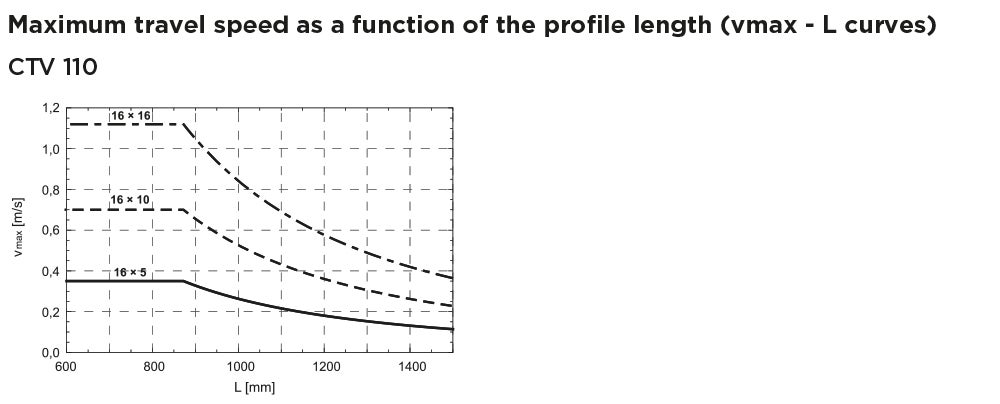

0,35 m/s 4200 rev/min 5,5 (w. keyway), 7,7 (w.o keyway) 5 mm/rev 0,11 Nm 0,13 Nm 16 x 5 ± 0,02 ± 0,01 13150 N 8700 N 40 29,10 196
Compare
Get quote
0,7 m/s 4200 rev/min 5,5 (w. keyway), 11,9 (w.o keyway) 10 mm/rev 0,12 Nm 0,16 Nm 16 x 10 ± 0,02 ± 0,01 11550 N 6730 N 40 29,10 196
Compare
Get quote
1,12 m/s 4200 rev/min 5,5 (w. keyway), 11,9 (w.o keyway) 16 mm/rev 0,14 Nm 0,18 Nm 16 x 16 ± 0,02 ± 0,01 8170 N 4200 N 40 29,10 196
Compare
Get quote
0,35 m/s 4200 rev/min 5,5 (w. keyway), 7,7 (w.o keyway) 5 mm/rev 0,11 Nm 0,13 Nm 16 x 5 ± 0,02 ± 0,01 13150 N 8700 N 40 29,10 196
Compare
Get quote
0,7 m/s 4200 rev/min 5,5 (w. keyway), 11,9 (w.o keyway) 10 mm/rev 0,12 Nm 0,16 Nm 16 x 10 ± 0,02 ± 0,01 11550 N 6730 N 40 29,10 196
Compare
Get quote
1,12 m/s 4200 rev/min 5,5 (w. keyway), 11,9 (w.o keyway) 16 mm/rev 0,14 Nm 0,18 Nm 16 x 16 ± 0,02 ± 0,01 8170 N 4200 N 40 29,10 196
Compare
Get quote
Additional Drawing 1
Designation Select all Carriage Length Lv Ball screw (d x l) Mass of linear unit Mass moment of inertia (10⁻⁵ kg * m²) Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴ Moved mass
39 16 x 5 3,3 + 0,008 * Stroke (mm) kg 0,70 + 0,005 * Stroke (mm) 29,10 196 0,63 kg
Compare
Get quote
39 16 x 10 3,3 + 0,008 * Stroke (mm) kg 0,82 + 0,005 * Stroke (mm) 29,10 196 0,63 kg
Compare
Get quote
39 16 x 16 3,3 + 0,008 * Stroke (mm) kg 1,07 + 0,005 * Stroke (mm) 29,10 196 0,63 kg
Compare
Get quote
124 16 x 5 4,6 + 0,008 * Stroke (mm) kg 1,19 + 0,005 * Stroke (mm) 29,10 196 1,36 kg
Compare
Get quote
124 16 x 10 4,6 + 0,008 * Stroke (mm) kg 1,45 + 0,005 * Stroke (mm) 29,10 196 1,36 kg
Compare
Get quote
124 16 x 16 4,6 + 0,008 * Stroke (mm) kg 1,99 + 0,005 * Stroke (mm) 29,10 196 1,36 kg
Compare
Get quote
