Rail RMG
The Rollco Roller Guides are highly developed solutions for the high-tech industry. The optimized shape of the rails, the roller guides with logarithmic profiles and the integrated lubrication system multiplies the economical as well as the technical advantages.
Dimensions in mm
Read more
Dimensions in mm
Product Information
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight (kg/m) | |
|---|---|---|---|---|---|---|---|
|
|
|
1 | 3.4 | ||||
|
|
|
1 | 6.5 | ||||
|
|
|
1 | 10.7 | ||||
|
|
|
2 | 15.2 | ||||
|
|
|
2 | 22.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

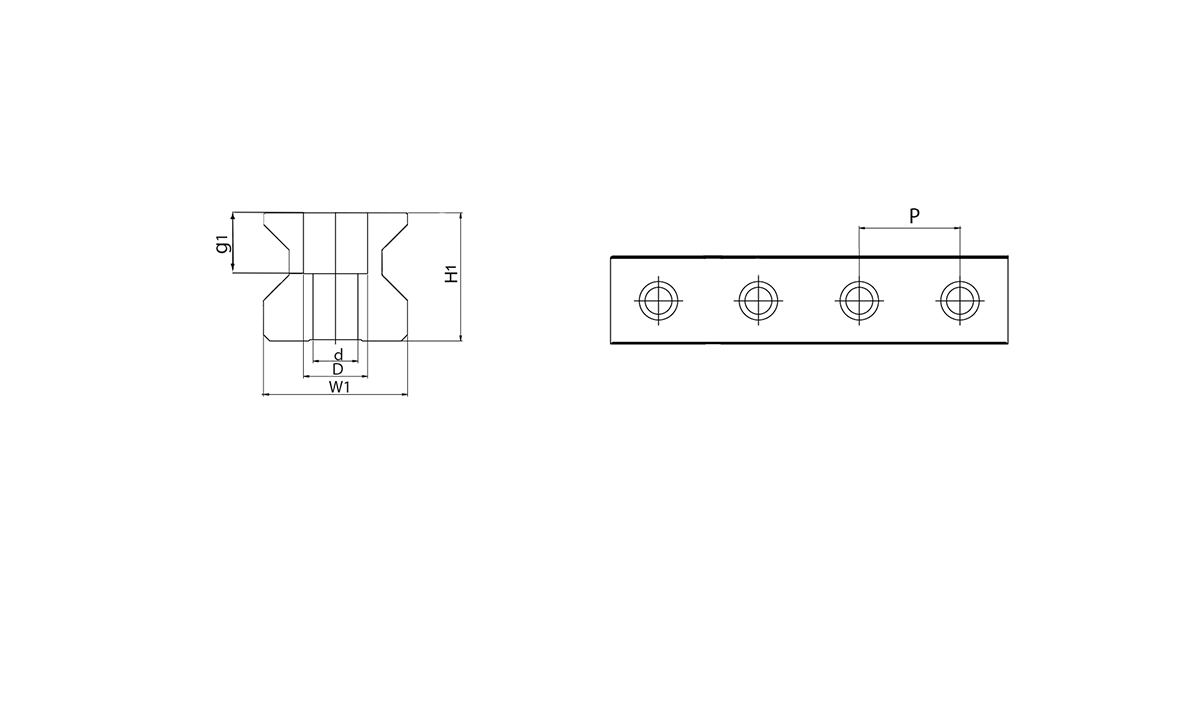

| Designation | Select all | CAD | Compare | Get quote | H1 | W1 | D x d x g1 | Hole Pitch (P) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
24.5 | 23 | 11 x 7 x 11.5 | 30 | ||||
|
|
|
32 | 34 | 15 x 9 x 17 | 40 | ||||
|
|
|
40 | 45 | 20 x 14 x 19 | 52.5 | ||||
|
|
|
48 | 53 | 24 x 16 x 22 | 60 | ||||
|
|
|
55 | 63 | 26 x 18 x 26 | 75 |
-
-
