DBN28

Full extension consisting of two guide rails, both fixed and movable, and two sliders which together form the intermediate element. The size is similar to the DE series and offers good protection from dirt of the open ballcage.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm

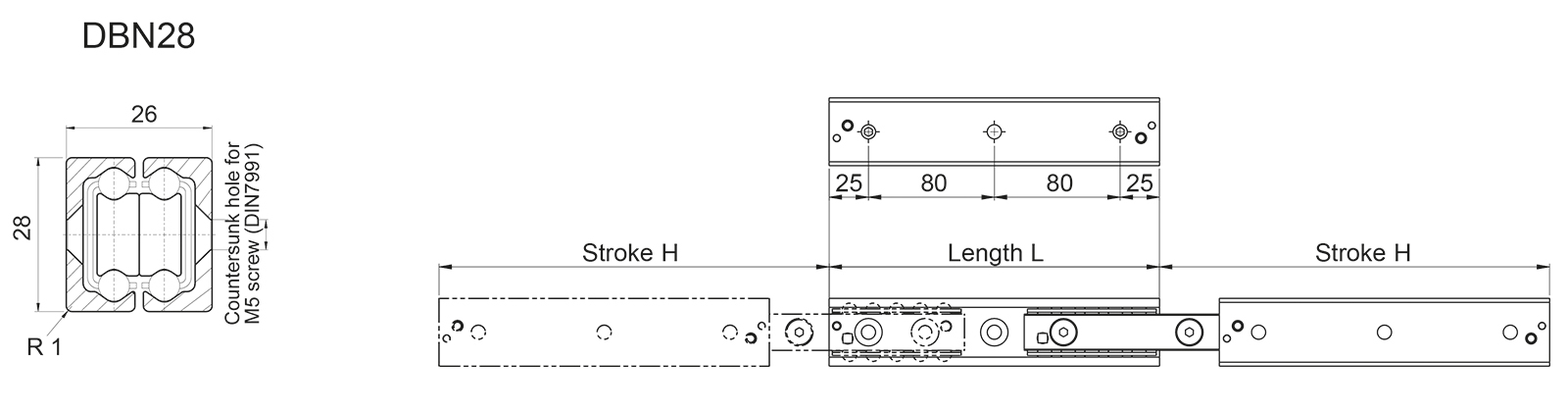

Technical Drawing
Designation Weight Length Stroke Modification System Load Capacity Radial System Load Capacity Axial Stroke Number of Fixing Holes
4,04 kg/m 130,00 19,00 235 N 164 N 148 2
4,04 kg/m 210,00 19,00 432 N 302 N 232 3
4,04 kg/m 290,00 19,00 622 N 537 N 296 4
4,04 kg/m 370,00 19,00 482 N 482 N 380 5
4,04 kg/m 450,00 19,00 393 N 393 N 464 6
4,04 kg/m 530,00 19,00 332 N 332 N 548 7
4,04 kg/m 610,00 19,00 286 N 286 N 633 8
4,04 kg/m 690,00 19,00 252 N 252 N 717 9
4,04 kg/m 770,00 19,00 226 N 226 N 801 10
4,04 kg/m 850,00 19,00 213 N 213 N 866 11
4,04 kg/m 930,00 19,00 194 N 194 N 950 12
4,04 kg/m 1 010,00 19,00 178 N 178 N 1034 13
4,04 kg/m 1 090,00 19,00 164 N 164 N 1118 14
4,04 kg/m 1 170,00 19,00 152 N 152 N 1202 15
