DBN43

Full extension consisting of two guide rails, both fixed and movable, and two sliders which together form the intermediate element. The size is similar to the DE series and offers good protection from dirt of the open ballcage.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm

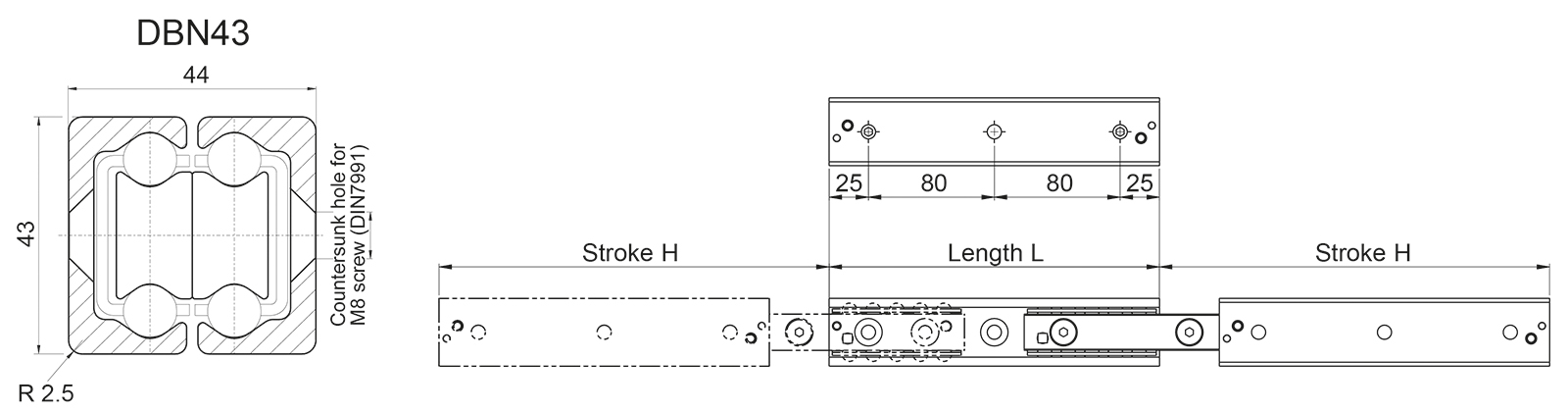

Technical Drawing
Designation Weight Length Stroke Modification System Load Capacity Radial System Load Capacity Axial Stroke Number of Fixing Holes
10,5 kg/m 210,00 30,00 605 N 424 N 246 3
10,5 kg/m 290,00 30,00 1114 N 780 N 316 4
10,5 kg/m 370,00 30,00 1300 N 910 N 416 5
10,5 kg/m 450,00 30,00 1331 N 1279 N 486 6
10,5 kg/m 530,00 30,00 1193 N 1193 N 556 7
10,5 kg/m 610,00 30,00 1082 N 1082 N 626 8
10,5 kg/m 690,00 30,00 912 N 912 N 726 9
10,5 kg/m 770,00 30,00 845 N 845 N 796 10
10,5 kg/m 850,00 30,00 788 N 788 N 866 11
10,5 kg/m 930,00 30,00 693 N 693 N 966 12
10,5 kg/m 1 010,00 30,00 654 N 654 N 1036 13
10,5 kg/m 1 090,00 30,00 619 N 619 N 1106 14
10,5 kg/m 1 170,00 30,00 559 N 559 N 1206 15
10,5 kg/m 1 250,00 30,00 533 N 533 N 1276 16
10,5 kg/m 1 330,00 30,00 488 N 488 N 1376 17
10,5 kg/m 1 410,00 30,00 469 N 469 N 1446 18
10,5 kg/m 1 490,00 30,00 450 N 450 N 1516 19
10,5 kg/m 1 570,00 30,00 434 N 434 N 1586 20
10,5 kg/m 1 650,00 30,00 403 N 403 N 1686 21
10,5 kg/m 1 730,00 30,00 390 N 390 N 1756 22
10,5 kg/m 1 890,00 30,00 354 N 354 N 1936 24
10,5 kg/m 1 810,00 30,00 365 N 365 N 1856 23
10,5 kg/m 1 970,00 30,00 334 N 334 N 2026 25
