DBN35

LOCALLY MANUFACTURED

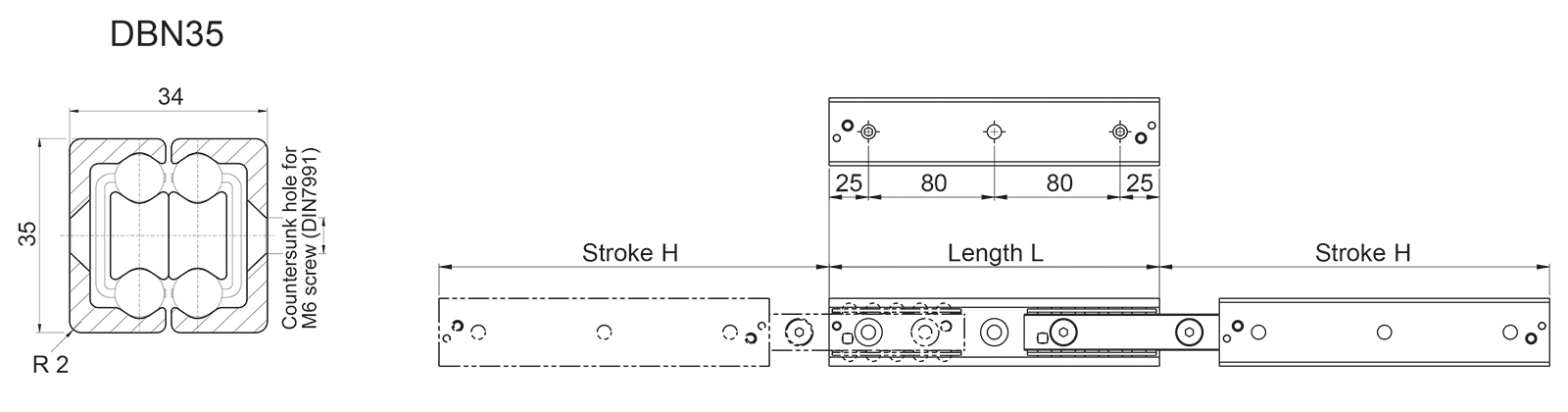

Full extension consisting of two guide rails, both fixed and movable, and two sliders which together form the intermediate element. The size is similar to the DE series and offers good protection from dirt of the open ballcage.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm.

System Load Capacity Radial and System Load Capacity Axial value refers to a pair of rails.

Product Information

Designation Select all Lead Time * Length Stroke Number of Fixing Holes Stroke Modification Weight (kg/m)
2 210 254 3 24 6,10
Get quote
2 290 318 4 24 6,10
Get quote
2 370 406 5 24 6,10
Get quote
2 450 494 6 24 6,10
Get quote
2 530 558 7 24 6,10
Get quote
2 610 646 8 24 6,10
Get quote
2 690 734 9 24 6,10
Get quote
2 770 798 10 24 6,10
Get quote
2 850 886 11 24 6,10
Get quote
2 930 974 12 24 6,10
Get quote
2 1010 1038 13 24 6,10
Get quote
2 1090 1126 14 24 6,10
Get quote
2 1170 1214 15 24 6,10
Get quote
2 1250 1278 16 24 6,10
Get quote
2 1330 1366 17 24 6,10
Get quote
2 1410 1454 18 24 6,10
Get quote
2 1490 1518 19 24 6,10
Get quote
