DBN22

LOCALLY MANUFACTURED

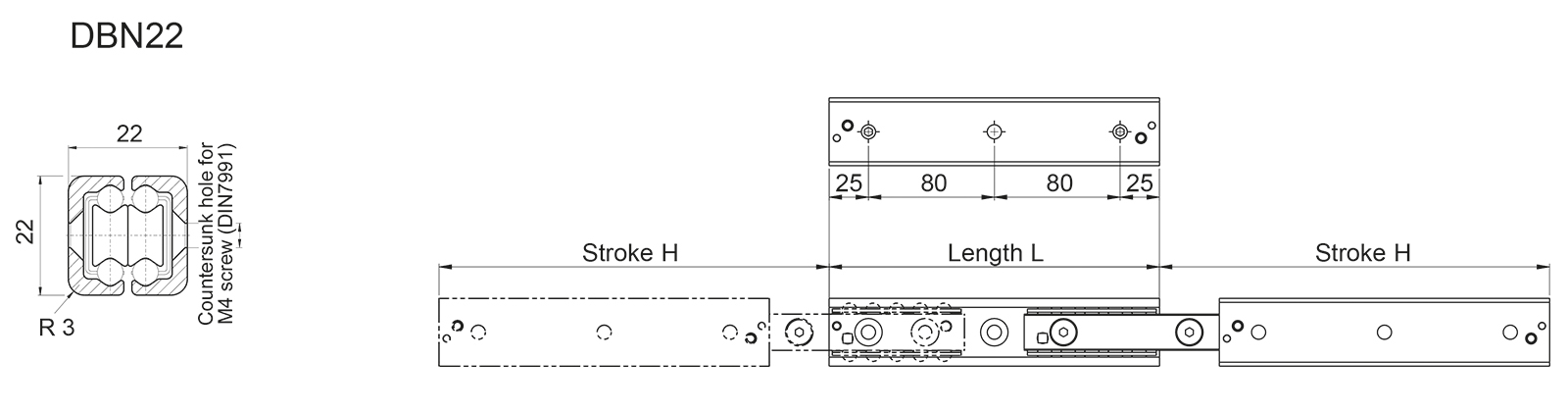

Full extension consisting of two guide rails, both fixed and movable, and two sliders which together form the intermediate element. The size is similar to the DE series and offers good protection from dirt of the open ballcage.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm.

System Load Capacity Radial and System Load Capacity Axial value refers to a pair of rails.

Product Information

Designation Select all Lead Time * Length Stroke Number of Fixing Holes Stroke Modification Weight (kg/m)
2 130 152 2 15 2,64
Get quote
2 210 222 3 15 2,64
Get quote
2 290 308 4 15 2,64
Get quote
2 370 392 5 15 2,64
Get quote
2 450 462 6 15 2,64
Get quote
2 530 548 7 15 2,64
Get quote
2 610 632 8 15 2,64
Get quote
2 690 702 9 15 2,64
Get quote
2 770 788 10 15 2,64
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all System Load Capacity Radial (N) System Load Capacity Axial (N)
238 166
Get quote
562 392
Get quote
472 472
Get quote
372 372
Get quote
324 324
Get quote
272 272
Get quote
234 234
Get quote
216 216
Get quote
190 190
Get quote
