Flanged Block Type FNS
This light-weight flanged runner block is designed for cost-effective applications such as assembly and handling processes. Mounting dimensions are identical to those of the steel guiding rails and in accordance to DIN 645-1, which makes them interchangeable and replaceable.
The runner block has a lateral abutment edge and can then be screwed from above or below. Runner block consists of an aluminium alloy with a tensile strength of 350N/mm2, balls and running tracks of hardened stainless steel, X46Cr13 (1.4034). All others parts are made of POM. The carriage is pre-lubricated and has standard seal units, which can be replaced.
Note!
Determination of the dynamic load capacities and torques is based on a travel life of 100.000 m. Due to the mechanical operations of guide rails and runner block with their different materials, is not possible to clearly indicate a static load rating. In this case never exceed Max permissible load or Static moment Mr0. Otherwise malfunction or damage may occur.
Dimensions in mm.
The runner block has a lateral abutment edge and can then be screwed from above or below. Runner block consists of an aluminium alloy with a tensile strength of 350N/mm2, balls and running tracks of hardened stainless steel, X46Cr13 (1.4034). All others parts are made of POM. The carriage is pre-lubricated and has standard seal units, which can be replaced.
Note!
Determination of the dynamic load capacities and torques is based on a travel life of 100.000 m. Due to the mechanical operations of guide rails and runner block with their different materials, is not possible to clearly indicate a static load rating. In this case never exceed Max permissible load or Static moment Mr0. Otherwise malfunction or damage may occur.
Dimensions in mm.

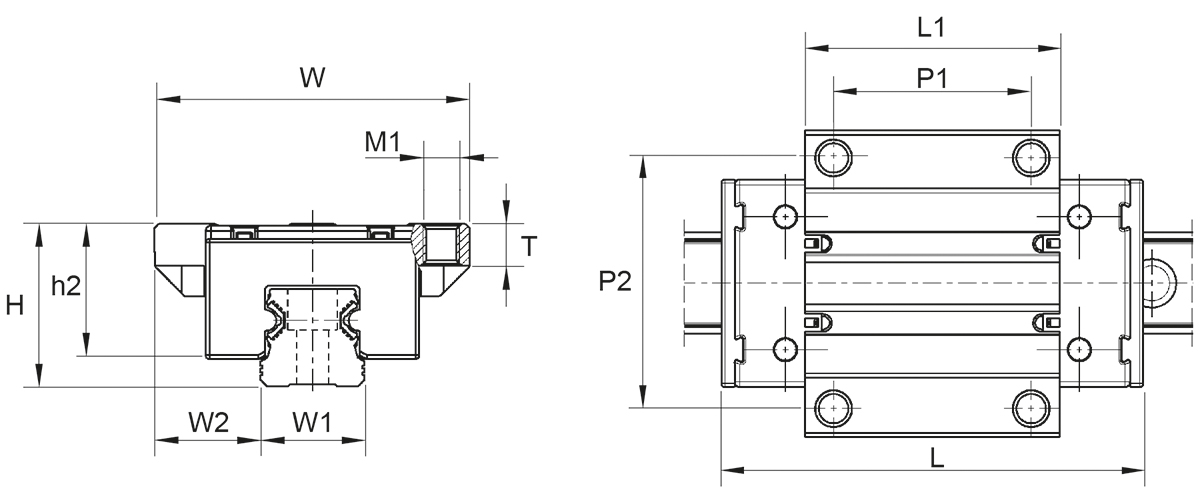

| Designation | Lead Time * | System Height (H) | System Width (W) | Block Length (L) | W1 | M1 | P1 | P2 | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
1 | 24 | 47 | 64 | 15 | M5 | 30 | 38 | Get quote | |
|
|
1 | 30 | 63 | 85,90 | 20 | M6 | 40 | 53 | Get quote | |
|
|
1 | 36 | 70 | 96 | 23 | M8 | 45 | 57 | Get quote |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

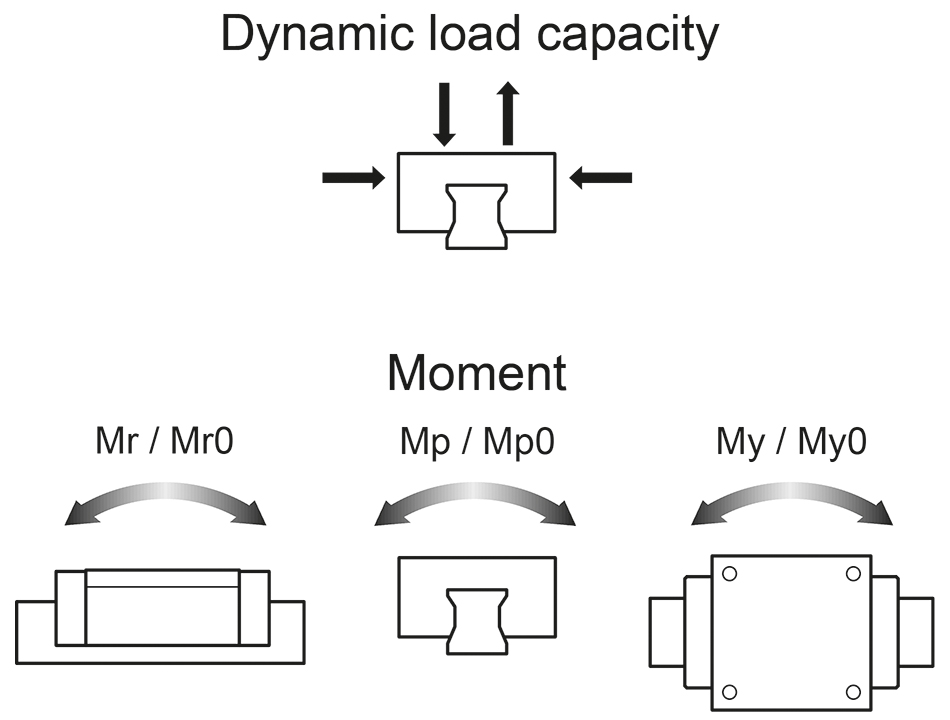

| Designation | Dynamic Load Capacity C | Dynamic Moment Mr | Dynamic Moment Mp | Dynamic Moment My | Static Moment Mr0 | Static Moment Mp0 | Static Moment My0 | Max. Permissible Load Fmax | Weight Block | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
5000 KN | 36 Nm | 29 Nm | 29 Nm | 14 Nm | 12 Nm | 12 Nm | 2000 N | 0,08 kg | Get quote | |
|
|
11000 KN | 101 Nm | 89 Nm | 89 Nm | 40 Nm | 35 Nm | 35 Nm | 4400 N | 0,18 kg | Get quote | |
|
|
16000 KN | 165 Nm | 147 Nm | 147 Nm | 66 Nm | 59 Nm | 59 Nm | 6400 N | 0,26 kg | Get quote |
