Narrow Block Type GNS

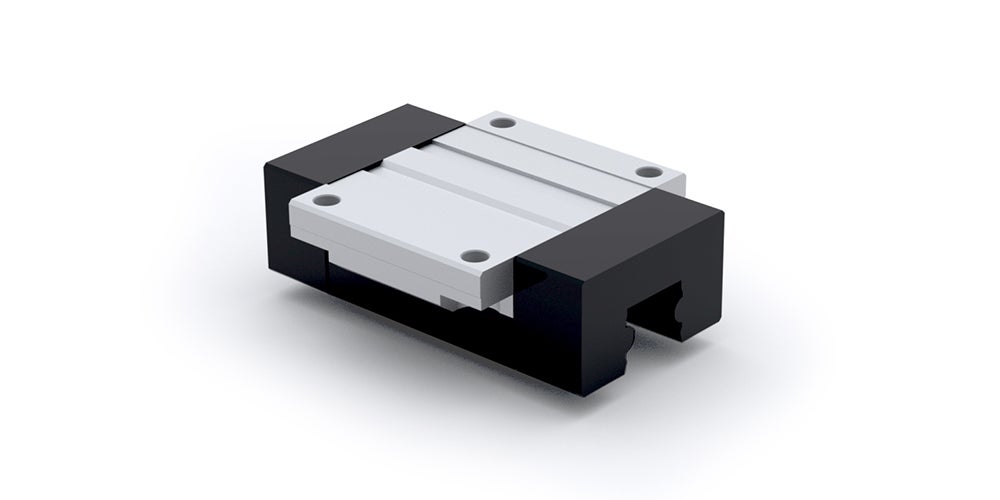

This light-weight narrow runner block corresponds to the structure of the flanged runner block from the previous page. It’s only slimmer and designed for mounting from above. The mounting dimensions are also identical to the steel guiding rails and in accordance to DIN 645-1. In this way you can easily change the installed constructions.
Note!
Determination of the dynamic load capacities and torques is based on a travel life of 100.000 m. Due to the mechanical operations of guide rails and runner block with their different materials, is not possible to clearly indicate a static load rating. In this case never exceed Max permissible load or Static moment Mr0. Otherwise malfunction or damage may occur.
Dimensions in mm.
Note!
Determination of the dynamic load capacities and torques is based on a travel life of 100.000 m. Due to the mechanical operations of guide rails and runner block with their different materials, is not possible to clearly indicate a static load rating. In this case never exceed Max permissible load or Static moment Mr0. Otherwise malfunction or damage may occur.
Dimensions in mm.

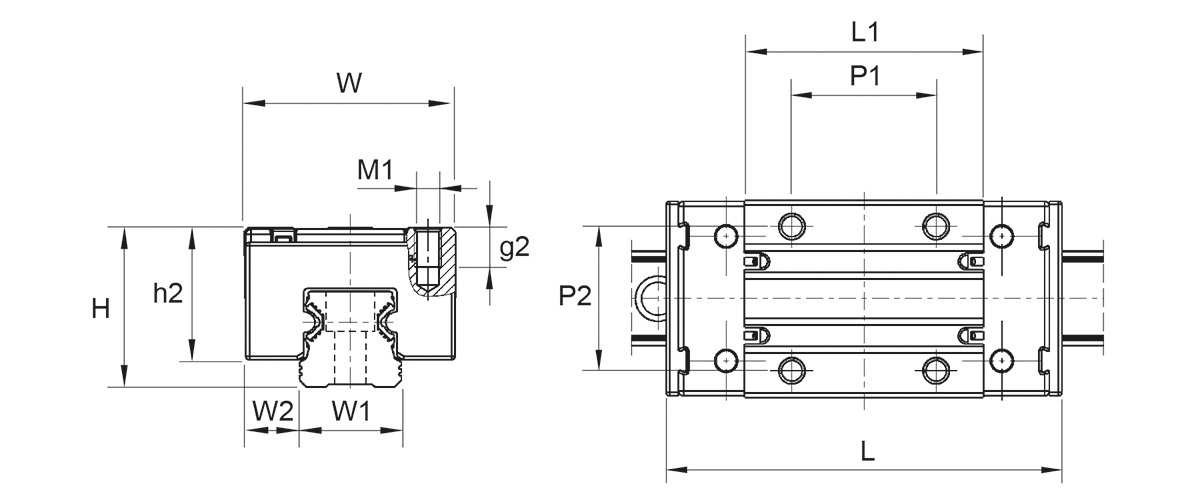

Designation | Lead Time * | System Height (H) | System Width (W) | Block Length (L) | W1 | M1 | P1 | P2 | g2 | ||
---|---|---|---|---|---|---|---|---|---|---|---|
|
1 | 24 | 34 | 64 | 15 | M4 | 26 | 26 | 6 | Get quote | |
|
1 | 30 | 44 | 85,90 | 20 | M5 | 36 | 32 | - | Get quote | |
|
1 | 36 | 48 | 96 | 23 | M6 | 35 | 35 | - | Get quote |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
