Rail Type A

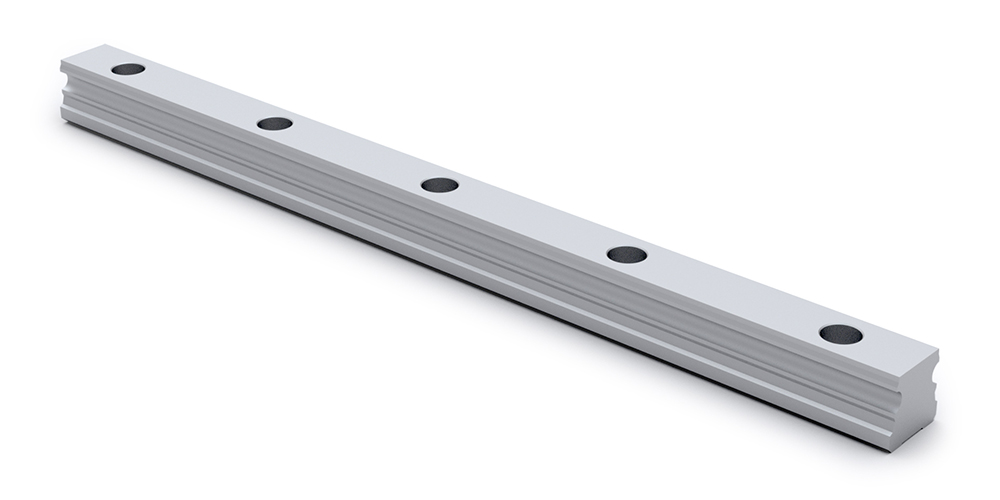

Corrosion resistant profiled rail, counterbore from above.

The aluminium profile rails are made of high quality aluminium alloy with rolled and precisely calibrated raceways made of stainless steel, X46Cr13 (1.4034) and are produced only in the accuracy class P. The use of aluminium achieves a weight saving compared to the steel types. It better compensates any unevenness in the mounting surface. The use of stainless steel for the track material, makes the rail corrosion resistant.

Due to the aluminium/steel composite construction, the rails should get ordered in the correct length. Only in exceptional cases it is allowed to cut it by yourself. Please insert rail lengths in mm after the designation when ordering. For example: A20-820.

Dimensions in mm.
Download PDF

Product Information

Technical Drawing
Designation Lead Time * Length Hole Pitch (P) D x d x g1 H1 W1
1 4 000 60 7,5 x 4,4 x 5,9 14 15 Get quote
1 4 000 60 9,5 x 6 x 7,4 19 20 Get quote
1 4 000 60 11 x 7 x 8,9 21,80 23 Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation H1 W1
14 15 Get quote
19 20 Get quote
21,80 23 Get quote
Technical Drawing
Designation Weight Rail
0,57 kg/m Get quote
0,98 kg/m Get quote
1,25 kg/m Get quote
