Rail Type B

STOCK ITEM

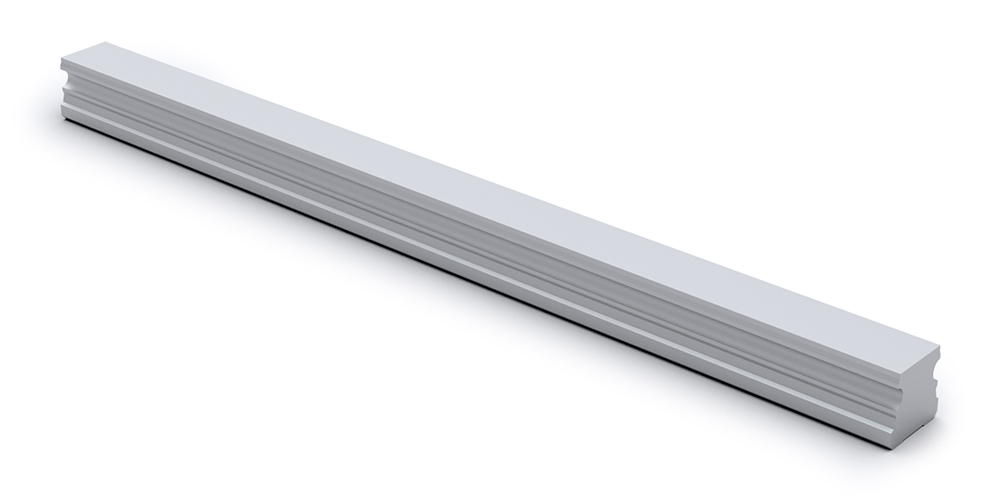

Corrosion resistant profiled rail, tapped from bottom.

The aluminium profile rails are made of high quality aluminium alloy with rolled and precisely calibrated raceways made of stainless steel, X46Cr13 (1.4034) and are produced only in the accuracy class P. The use of aluminium achieves a weight saving compared to the steel types. It better compensates any unevenness in the mounting surface. The use of stainless steel for the track material, makes the rail corrosion resistant.

Due to the aluminium/steel composite construction, the rails should get ordered in the correct length. Only in exceptional cases it is allowed to cut it by yourself. Please insert rail lengths in mm after the designation when ordering. For example: B20-820.

Dimensions in mm.
Download PDF

Product Information

Technical Drawing
Designation Select all Lead Time * Length Hole Pitch (P) H1 W1 Mxg3
1 4 000 60 14 15 M5 x 7
Compare
Get quote
1 4 000 60 19 20 M6 x 9
Compare
Get quote
1 4 000 60 21,80 23 M6 x 12
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all H1 W1
14 15
Compare
Get quote
19 20
Compare
Get quote
21,80 23
Compare
Get quote
Technical Drawing
Designation Select all Weight Rail
0,57 kg/m
Compare
Get quote
0,95 kg/m
Compare
Get quote
1,25 kg/m
Compare
Get quote
