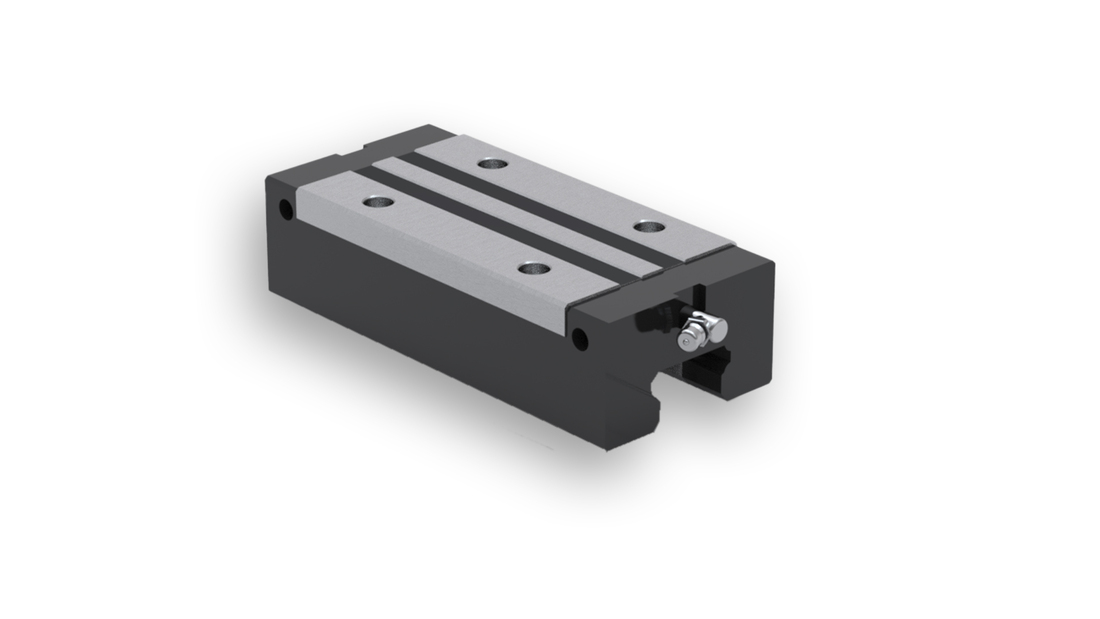

SBI HLL / SBI CLL
Long, low height block without flange. Side nipple, dustproof end seal and self-lubricant container end seal as option.
* S: Bolt size for bottom mounting type of block
All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option
Please contact Rollco for more information.Dimensions in mm.
* S: Bolt size for bottom mounting type of block
All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option
Please contact Rollco for more information.Dimensions in mm.
Last ned PDF
code.product.loadingpdf
+
Legg til i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Static Moment Mr0 (Nm) | Static Moment Mp0 (Nm) | Static Moment My0 (Nm) | Weight Block (g) | Weight Rail (g/m) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1 | 17100 | 31700 | 210 | 290 | 290 | 260 | 1300 |
|
|||
|
|
1 | 27900 | 50000 | 470 | 560 | 560 | 520 | 2200 |
|
|||
|
|
2 | 36700 | 64400 | 690 | 840 | 840 | 820 | 3000 |
|
|||
|
|
1 | 36700 | 64400 | 690 | 840 | 840 | 850 | 3000 |
|
|||
|
|
1 | 51300 | 84700 | 1100 | 1300 | 1300 | 1370 | 4250 |
|
|||
|
|
2 | 71300 | 115300 | 1830 | 2120 | 2120 | 2040 | 6020 |
|
|||
|
|
2 | 94800 | 150500 | 3210 | 3140 | 3140 | 3690 | 9770 |
|
|||
|
|
2 | 147900 | 224500 | 5950 | 4780 | 4780 | 5820 | 13720 |
|
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
| Designation | Select all | W1 | H1 | P | D x d x g1 | Length | Hole Pitch (P) | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
15 | 13 | 60 | 7,5 x 4,5 x 5,5 | 3000 | 60 |
|
|||
|
|
20 | 16,50 | 60 | 9,5 x 6 x 8,5 | 4000 | 60 |
|
|||
|
|
23 | 20 | 60 | 11 x 7 x 9 | 4000 | 60 |
|
|||
|
|
23 | 20 | 60 | 11 x 7 x 9 | 4000 | 60 |
|
|||
|
|
28 | 23 | 80 | 14 x 9 x 12 | 4000 | 80 |
|
|||
|
|
34 | 26 | 80 | 14 x 9 x 12 | 4000 | 80 |
|
|||
|
|
45 | 32 | 105 | 20 x 14 x 17 | 4000 | 105 |
|
|||
|
|
53 | 38 | 120 | 23 x 16 x 20 | 4000 | 120 |
|
| Designation | Select all | Block Length (L) | System Width (W) | L1 | h2 | W2 | S1 | E | S2 | N3 | N1 | N2 | MxDP | H1 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
79,40 | 34 | 60,80 | 21 | 9,50 | 4,50 | 5,50 | 3,80 | 3,80 | M4x0,7 | Ø 3,5 | M4x4 | 13 |
|
|||
|
|
96,40 | 44 | 74,40 | 23,40 | 12 | 4,80 | 12 | 4 | 5 | M6x0,75 | Ø 3,5 | M5x5 | 16,50 |
|
|||
|
|
108 | 48 | 86 | 27,50 | 12,50 | 5,40 | 12 | 5,40 | 5 | M6x0,75 | Ø 3,5 | M6x6 | 20 |
|
|||
|
|
108 | 48 | 86 | 30,50 | 12,50 | 6 | 12 | 5 | 5,50 | M6x0,75 | Ø 3,5 | M6x6 | 20 |
|
|||
|
|
131,60 | 60 | 103,60 | 35 | 16 | 8,50 | 12 | 7,80 | 5 | M6x0,75 | Ø 5,7 | M8x8 | 23 |
|
|||
|
|
152,60 | 70 | 122,60 | 40,50 | 18 | 8 | 12 | 8 | 6 | M6x0,75 | Ø 5,7 | M8x8 | 26 |
|
|||
|
|
174 | 86 | 140 | 51 | 20,50 | 10,50 | 13,50 | 9,30 | 6,50 | PT1/8 | Ø 5,7 | M10x10 | 32 |
|
|||
|
|
211,80 | 100 | 170,40 | 58 | 23,50 | 12 | 13 | 12 | 8 | PT1/8 | Ø 8,7 | M12x12 | 38 |
|
-
-
