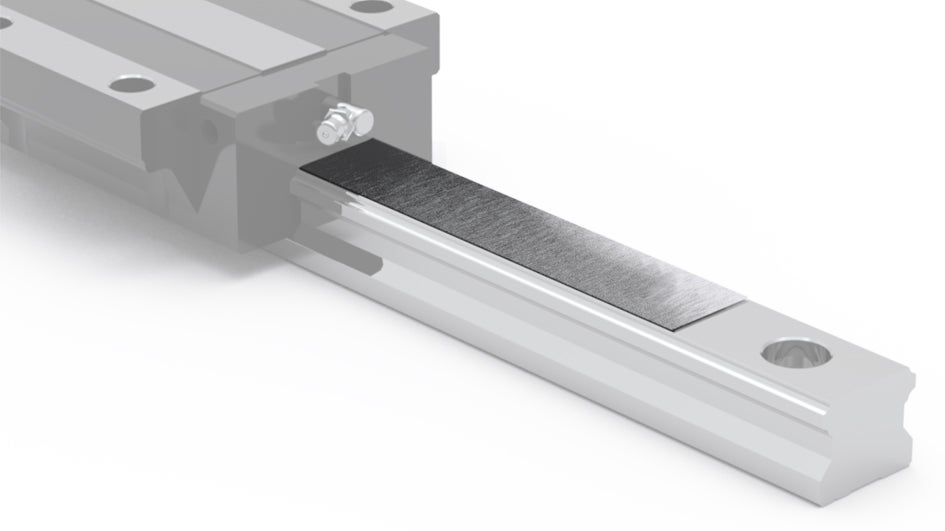

ST Stainless Dustproof Tape
Tape for improved rail sealing
SBI-HL /-HLS /-CL /-CLS

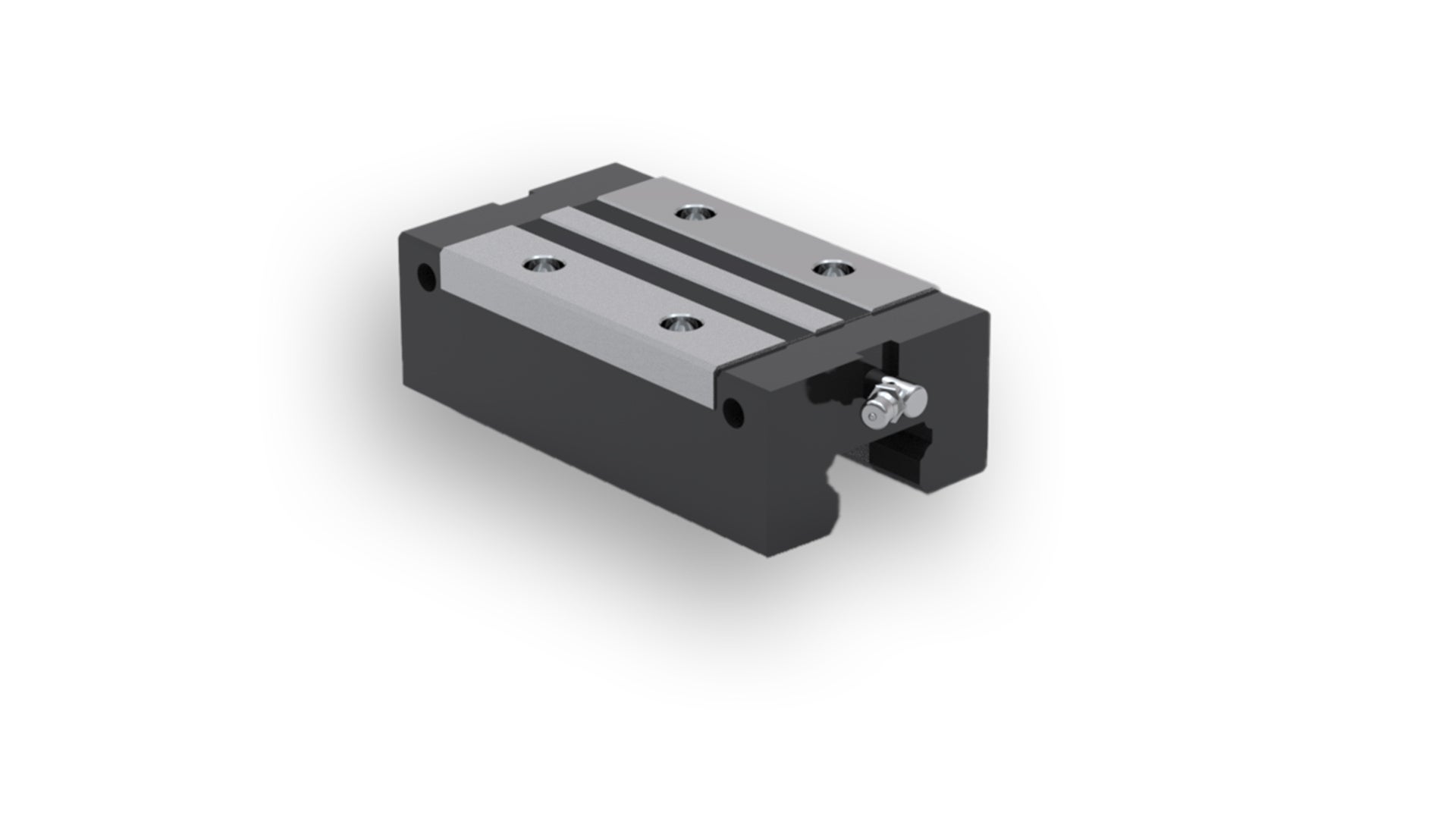

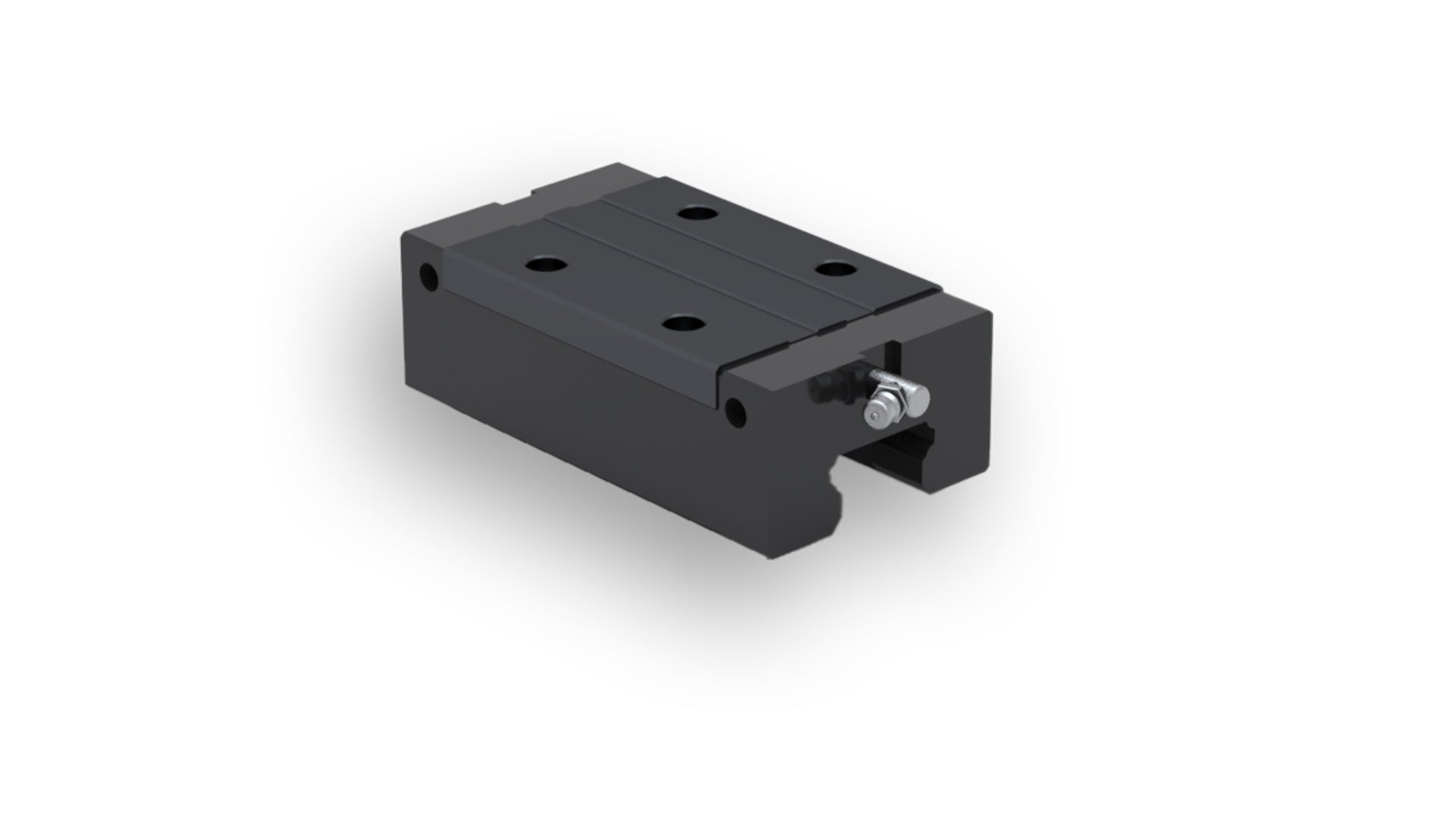

Low height block without flange. Side-nipple, dustproof end seal and self-lubricant container end seal as option.
* S: Bolt size for bottom mounting type of block

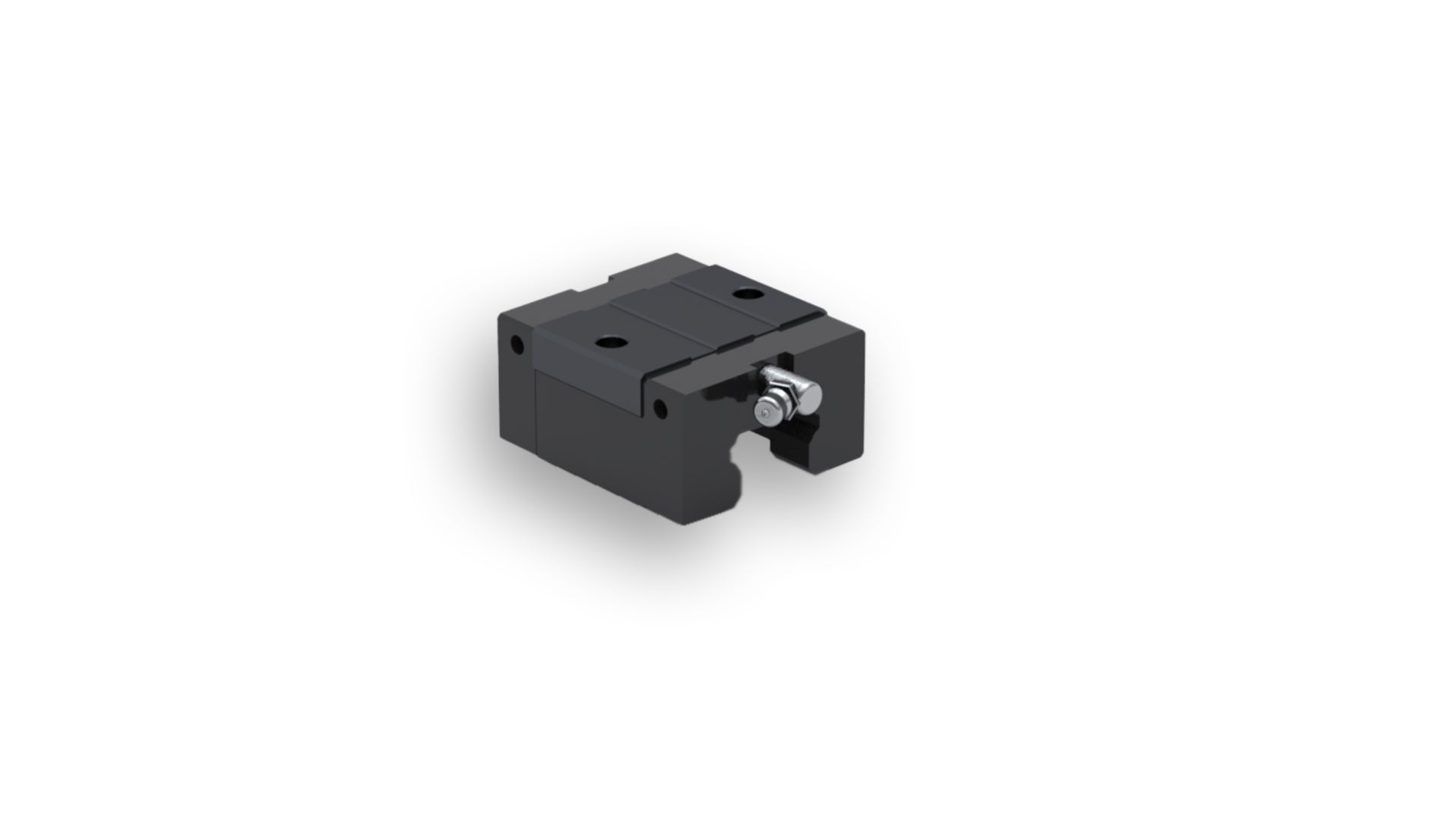

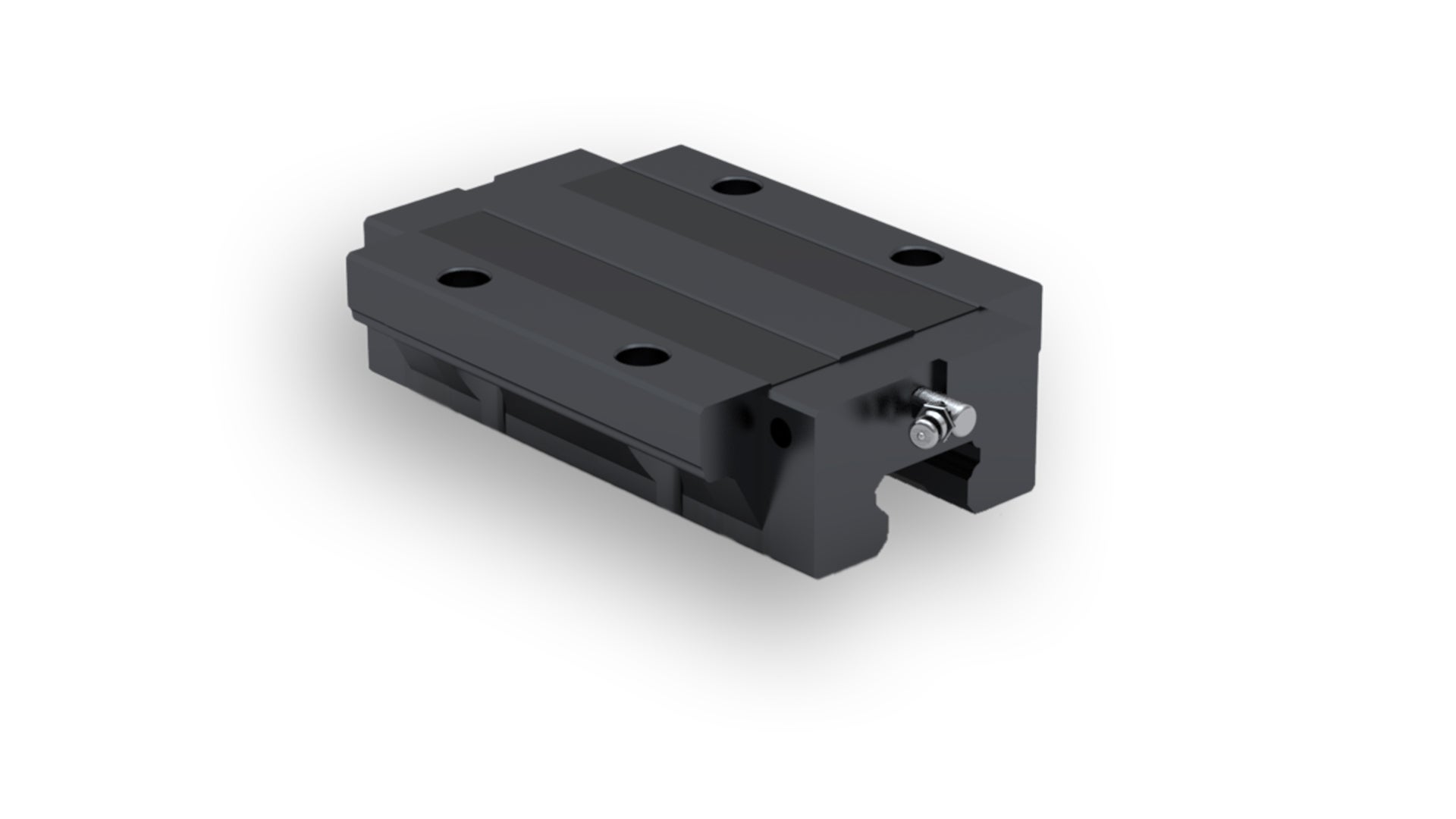

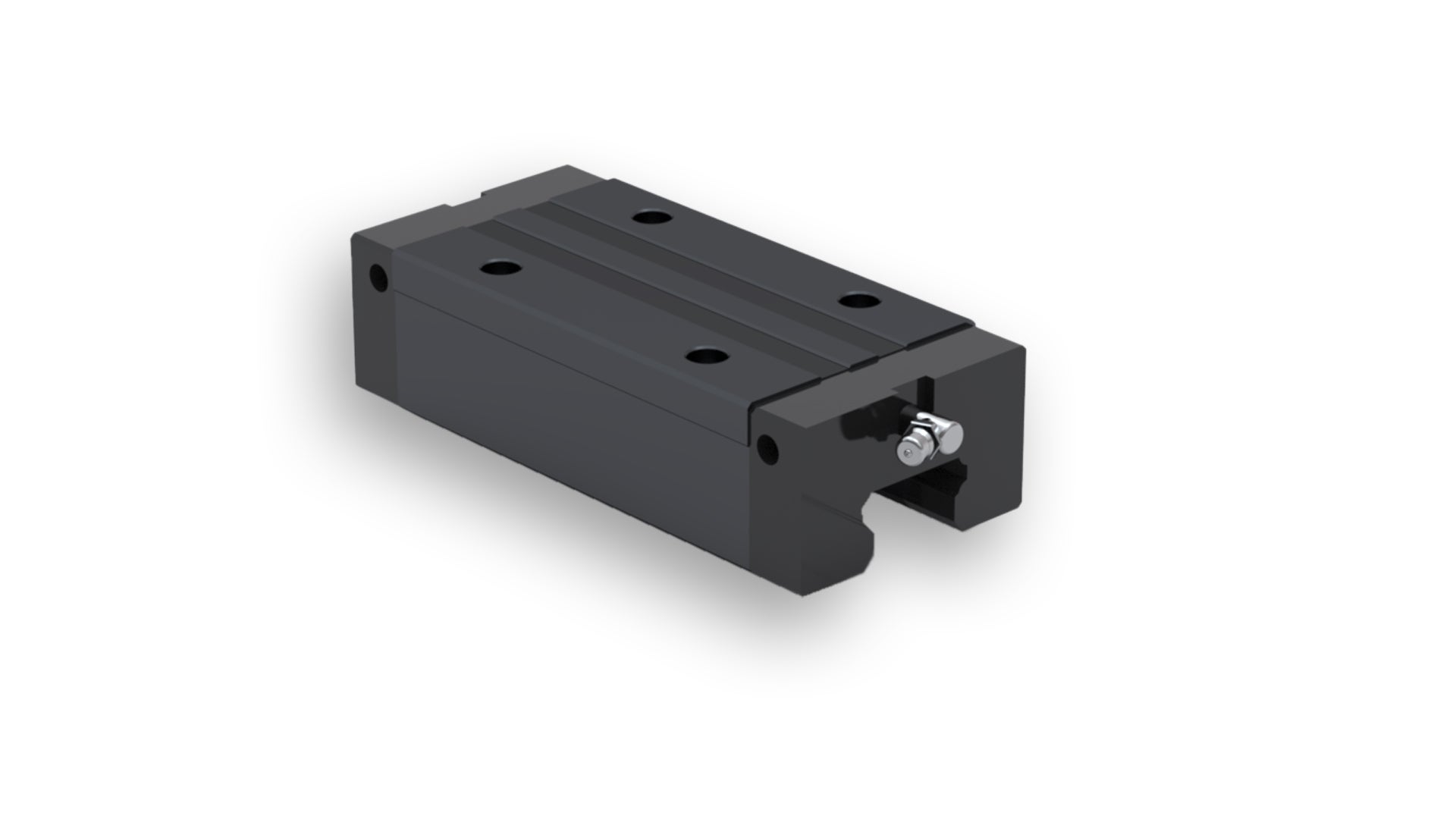

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option
Please contact Rollco for more information.Dimensions in mm.
* S: Bolt size for bottom mounting type of block
All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option
Please contact Rollco for more information.Dimensions in mm.
Last ned PDF
code.product.loadingpdf
+
Legg til i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Dynamic Load Capacity C (N) | Static Load Capacity C0 (N) | Static Moment Mr0 (Nm) | Static Moment Mp0 (Nm) | Static Moment My0 (Nm) | Weight Block (g) | Weight Rail (g/m) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1 | 14100 | 24100 | 160 | 170 | 170 | 190 | 1300 |
|
|||
|
|
1 | 12300 | 18300 | 130 | 80 | 80 | 150 | 1300 |
|
|||
|
|
1 | 22200 | 38200 | 360 | 330 | 330 | 390 | 2200 |
|
|||
|
|
1 | 19100 | 27000 | 270 | 150 | 150 | 230 | 2200 |
|
|||
|
|
1 | 31500 | 52100 | 560 | 560 | 560 | 660 | 3000 |
|
|||
|
|
1 | 31500 | 52100 | 560 | 560 | 560 | 690 | 3000 |
|
|||
|
|
1 | 42800 | 65400 | 850 | 770 | 770 | 1040 | 4250 |
|
|||
|
|
1 | 59500 | 89100 | 1420 | 1280 | 1280 | 1560 | 6020 |
|
|||
|
|
1 | 79200 | 116300 | 2480 | 1900 | 1900 | 2800 | 9770 |
|
|||
|
|
2 | 127300 | 181800 | 4810 | 2970 | 2970 | 4420 | 13720 |
|
*Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
| Designation | Select all | W1 | H1 | P | D x d x g1 | Length | Hole Pitch (P) | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
|
15 | 13 | 60 | 7,5 x 4,5 x 5,5 | 3000 | 60 |
|
|||
|
|
15 | 13 | 60 | 7,5 x 4,5 x 5,5 | 3000 | 60 |
|
|||
|
|
20 | 16,50 | 60 | 9,5 x 6 x 8,5 | 4000 | 60 |
|
|||
|
|
20 | 16,50 | 60 | 9,5 x 6 x 8,5 | 4000 | 60 |
|
|||
|
|
23 | 20 | 60 | 11 x 7 x 9 | 4000 | 60 |
|
|||
|
|
23 | 20 | 60 | 11 x 7 x 9 | 4000 | 60 |
|
|||
|
|
28 | 23 | 80 | 14 x 9 x 12 | 4000 | 80 |
|
|||
|
|
34 | 26 | 80 | 14 x 9 x 12 | 4000 | 80 |
|
|||
|
|
45 | 32 | 105 | 20 x 14 x 17 | 4000 | 105 |
|
|||
|
|
53 | 38 | 120 | 23 x 16 x 20 | 4000 | 120 |
|
| Designation | Select all | Block Length (L) | System Width (W) | L1 | h2 | W2 | S1 | E | S2 | N3 | N1 | N2 | MxDP | H1 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
63,80 | 34 | 45,20 | 21 | 9,50 | 4,50 | 5,50 | 3,80 | 3,80 | M4x0,7 | Ø 3,5 | M4x4 | 13 |
|
|||
|
|
56,80 | 34 | 38,20 | 21 | 9,50 | 4,50 | 5,50 | 3,80 | 3,80 | M4x0,7 | Ø 3,5 | M4x4 | 13 |
|
|||
|
|
78,80 | 44 | 56,80 | 23,40 | 12 | 4,80 | 12 | 4 | 5 | M6x0,75 | Ø 3,5 | M5x5 | 16,50 |
|
|||
|
|
65,20 | 42 | 43,20 | 23,40 | 11 | 4,80 | 12 | 4,30 | 5 | M6x0,75 | Ø 3,5 | M5x5 | 16,50 |
|
|||
|
|
92 | 48 | 70 | 27,50 | 12,50 | 5,40 | 12 | 5,40 | 5 | M6x0,75 | Ø 3,5 | M6x6 | 20 |
|
|||
|
|
92 | 48 | 70 | 30,50 | 12,50 | 6 | 12 | 5 | 5,50 | M6x0,75 | Ø 3,5 | M6x6 | 20 |
|
|||
|
|
107,60 | 60 | 79,60 | 35 | 16 | 8,50 | 12 | 7,80 | 5 | M6x0,75 | Ø 5,7 | M8x8 | 23 |
|
|||
|
|
124,60 | 70 | 94,60 | 40,50 | 18 | 8 | 12 | 8 | 6 | M6x0,75 | Ø 5,7 | M8x8 | 26 |
|
|||
|
|
142 | 86 | 108 | 51 | 20,50 | 10,50 | 13,50 | 9,30 | 6,50 | PT1/8 | Ø 5,7 | M10x10 | 32 |
|
|||
|
|
172,40 | 100 | 131 | 58 | 23,50 | 12 | 13 | 12 | 8 | PT1/8 | Ø 8,7 | M12x12 | 38 |
|
-
-

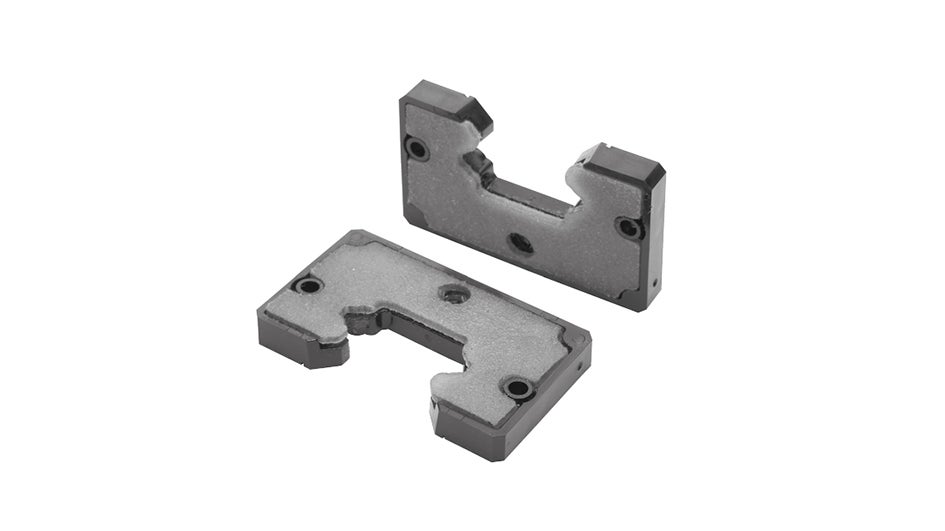

DF Seal High Dust Proof
Dustproof end seal -
MF Container Self Lubricant
Self-lubricant container, end seal -

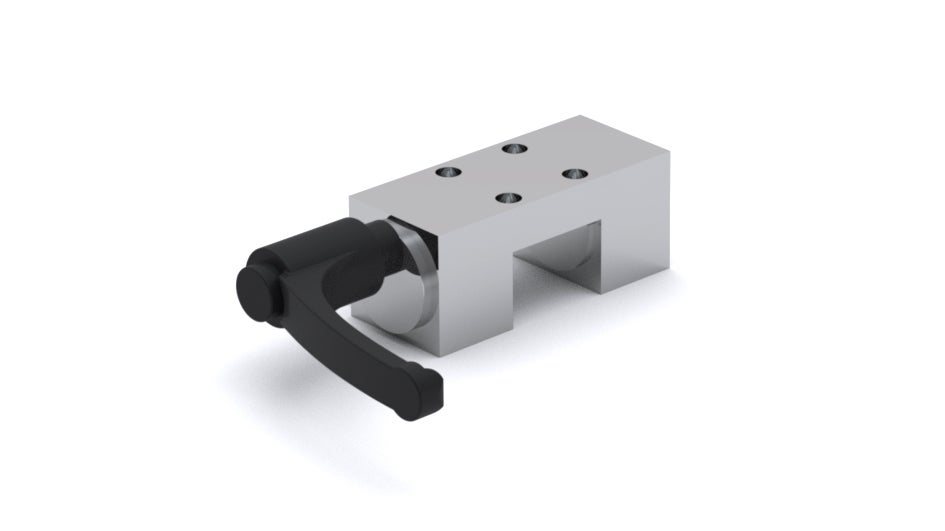

RCS Clamping Element
Manually operated clamping element -

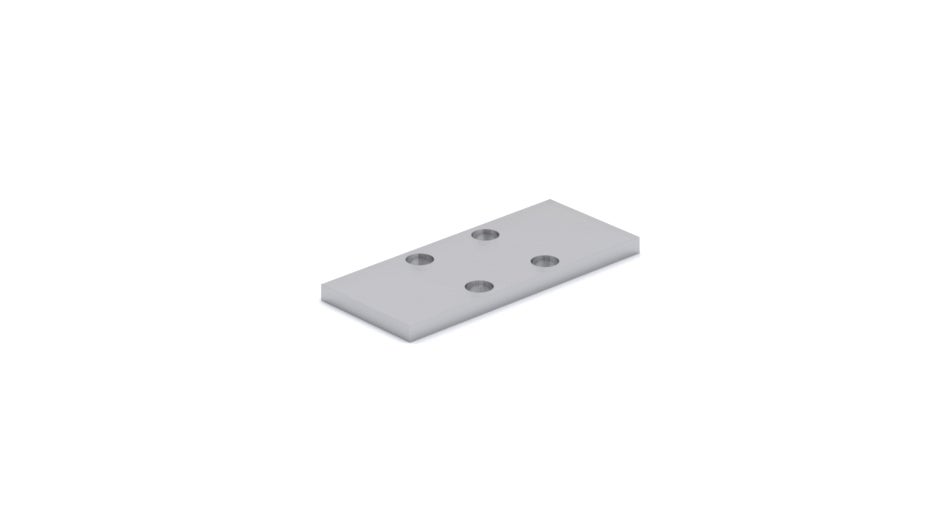

Adapter Plate for RCS Clamping Element
To compensate for different block heights
-

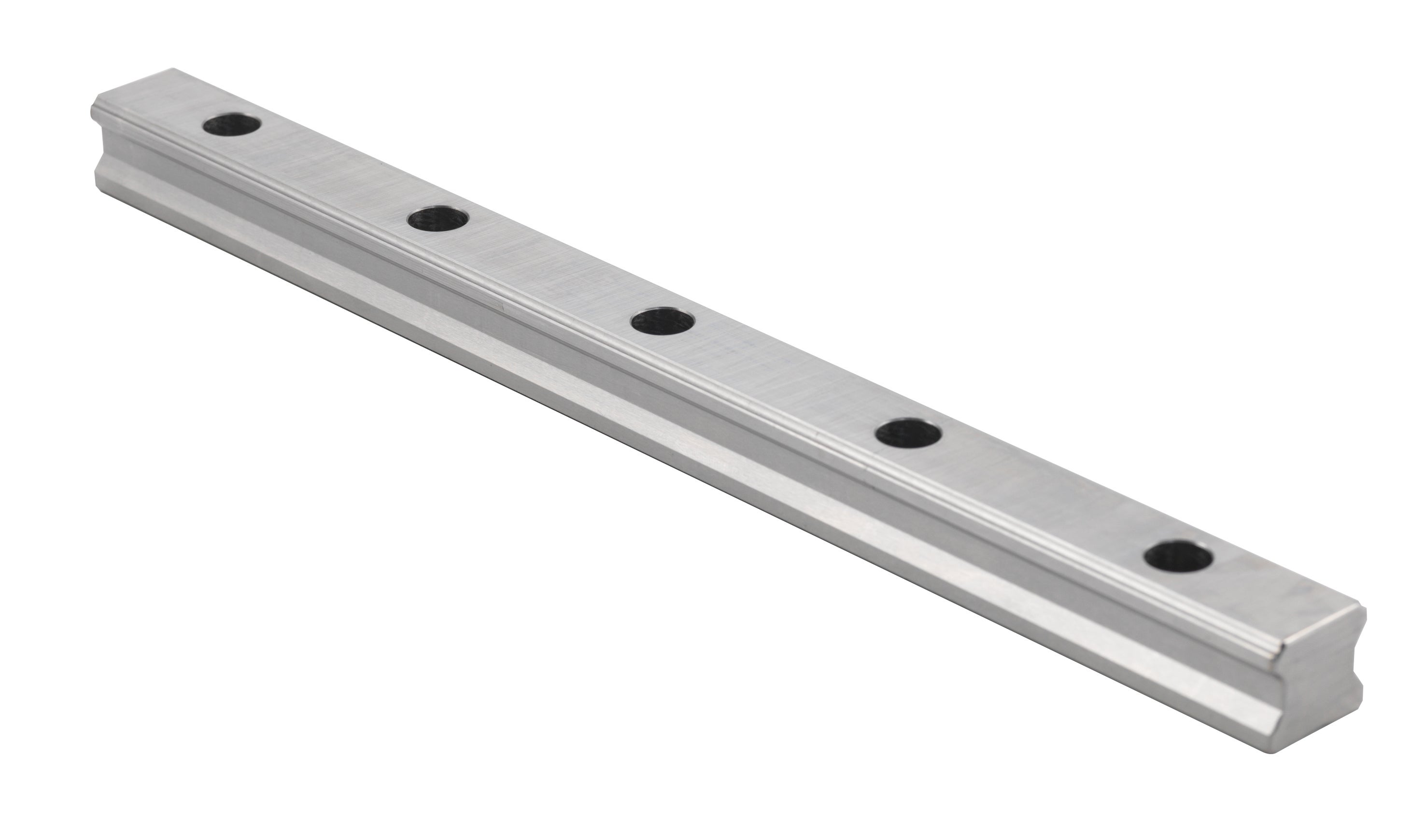

Standard Rail SBI
Counterbore from above -

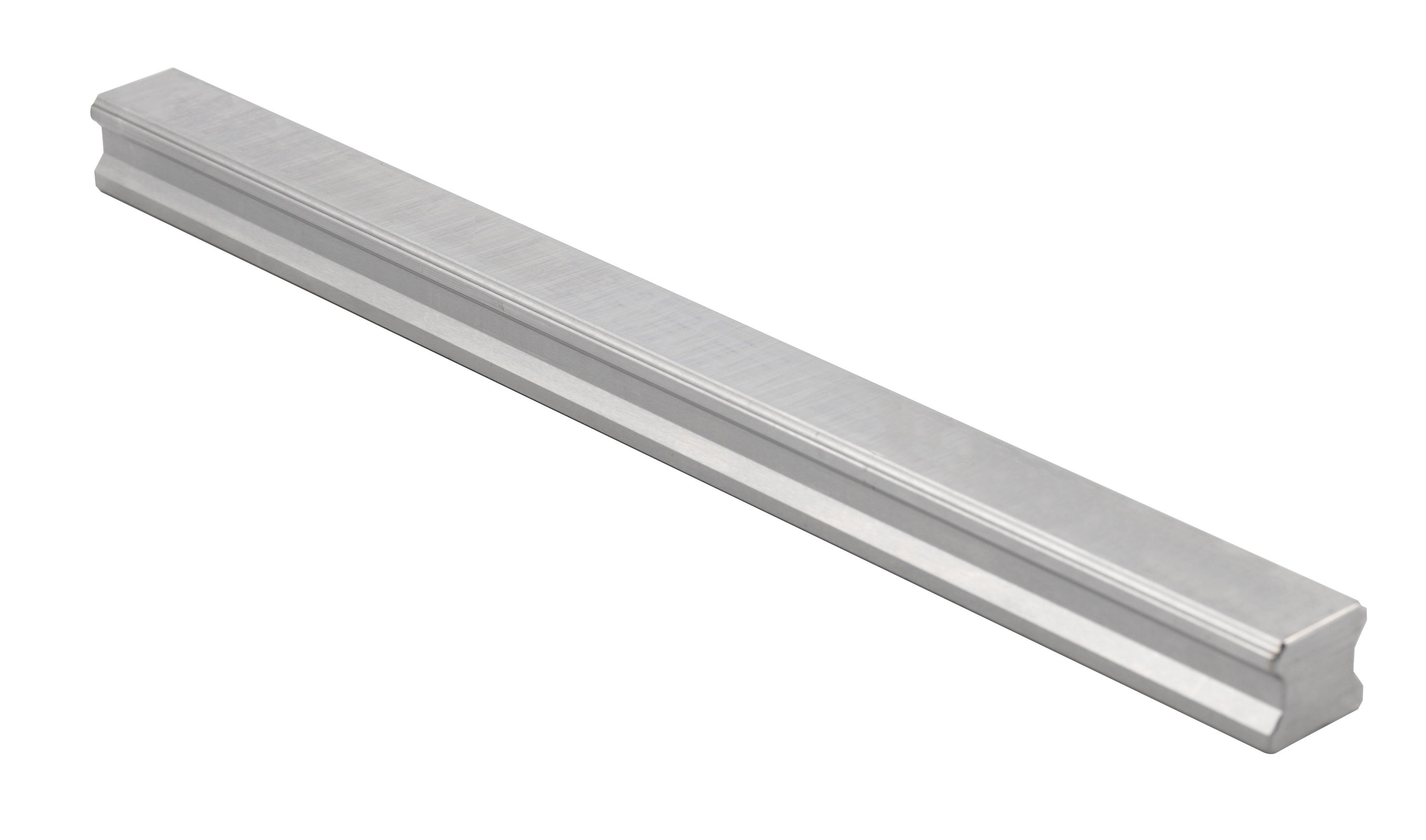

Bottom Mounting Rail SBI-B
Tapped from the bottom
