SBI SV

Corrosion Resistant Option STOCK ITEM
Super short block without flange. Side-nipple, dustproof end seal and self-lubricant container end seal as option.

* S: Bolt size for bottom mounting type of block

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.Dimensions in mm.
Download PDF

Product Information

Additional Drawing 1

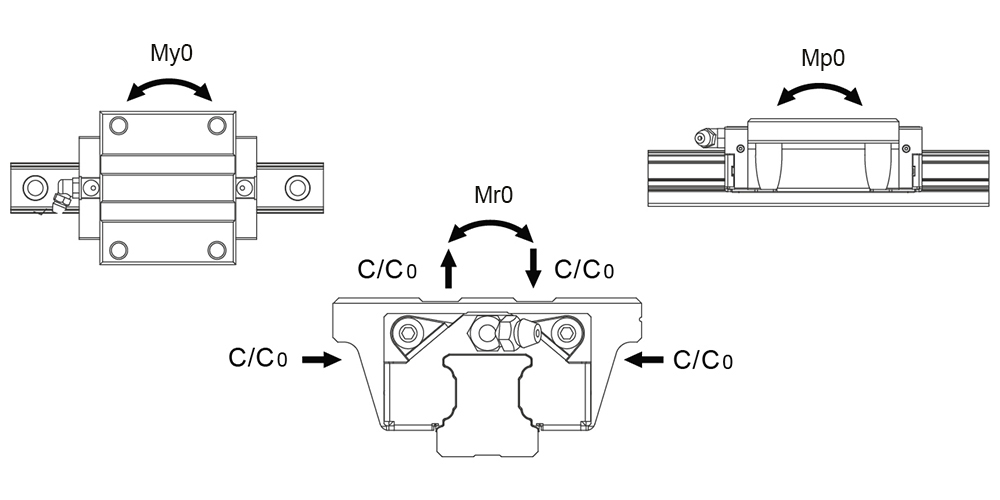

Designation Select all Lead Time * Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block Weight Rail
1 5800 N 12800 N 40 Nm 30 Nm 30 Nm 100 g 1300 g/m Configure CAD
Compare
Get quote
1 9400 N 20200 N 120 Nm 100 Nm 100 Nm 240 g 2200 g/m Configure CAD
Compare
Get quote
1 12400 N 26100 N 190 Nm 170 Nm 170 Nm 370 g 3000 g/m Configure CAD
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

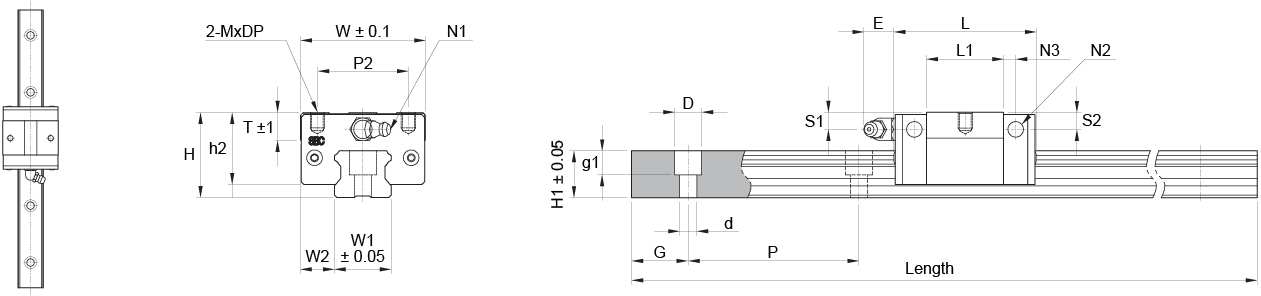

Technical Drawing
Designation Select all System Height (H) System Width (W) Block Length (L)
24 34 39,90 Configure CAD
Compare
Get quote
28 44 49,10 Configure CAD
Compare
Get quote
33 48 52,60 Configure CAD
Compare
Get quote
Technical Drawing
Designation Select all P2
26 Configure CAD
Compare
Get quote
32 Configure CAD
Compare
Get quote
35 Configure CAD
Compare
Get quote
Technical Drawing
Designation Select all W1 H1 P D x d x g1 Length Hole Pitch (P)
15 13 60 7,5 x 4,5 x 5,5 3 000 60 Configure CAD
Compare
Get quote
20 16,50 60 9,5 x 6 x 8,5 4 000 60 Configure CAD
Compare
Get quote
23 20 60 11 x 7 x 9 4 000 60 Configure CAD
Compare
Get quote
Technical Drawing
Designation Select all L1 h2 W2 S1 E S2 N3 N1 N2 MxDP T H1
21,30 21 9,50 4,50 5,50 3,80 3,40 M4x0,7 Ø 3,5 M4x4 6 13 Configure CAD
Compare
Get quote
27,10 23,40 12 4,80 12 4 5 M6x0,75 Ø 3,5 M5x5 7,80 16,50 Configure CAD
Compare
Get quote
30,60 27,50 12,50 5,40 12 5,40 5 M6x0,75 Ø 3,5 M6x6 9 20 Configure CAD
Compare
Get quote
